CM75TL-12NF Powerex - IGBT MODULE

Category: IGBT Modules

Specifications: 600V, 75A

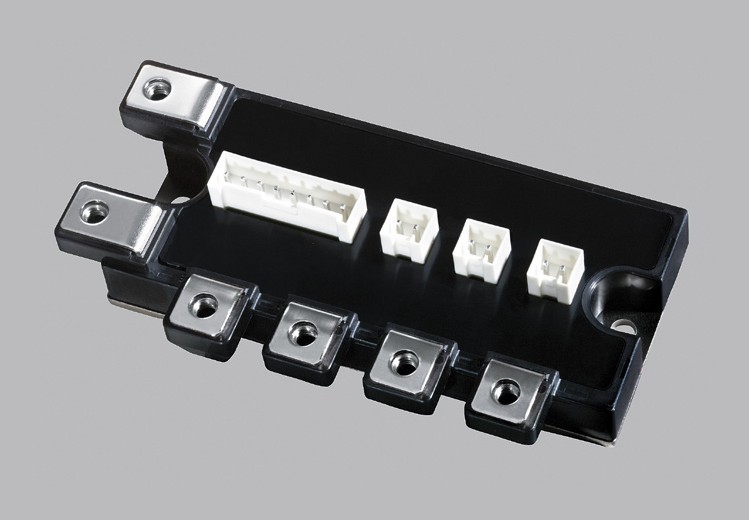

CM75TL-12NF, Mitsubishi, Power Transistor Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

CM75TL-12NF Description

Powerex CM75TL-12NF is an IGBT module rated at 600 V and 75 A. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Request a quote for the CM75TL-12NF and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

CM75TL-12NF is a 600 V, 75 A IGBT module.

Target Applications

Powerex CM75TL-12NF is used for AC Motor Control, UPS and Photovoltaic/Fuel Cell.

Key Specifications

CM75TL-12NF is a 600 V, 75 A IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
Collector-emitter voltage (VCES)600 V
Collector current (IC)75 A
Isolation voltage2,500 V
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75TL-12NF (reply within 24 hours)
