CM75TF-12E Mitsubishi - IGBT Power Transistor Module

CM75TF-12E Description

The CM75TF-12E from Mitsubishi Electric is an IGBT module with a 600 V / 75 A rating. It is built with six switches arranged as a three-phase bridge (6-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM75TF-12E and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM75TF-12E is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM75TF-12E is a 600 V, 75 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	75 A

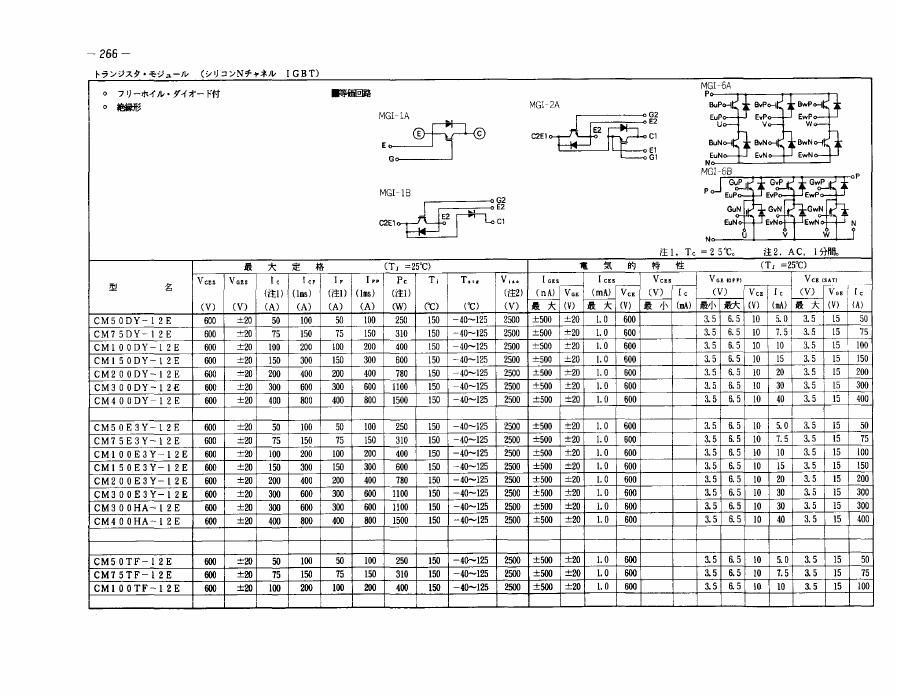

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75TF-12E (reply within 24 hours)
