CM100TJ-24F Powerex - IGBT Module

CM100TJ-24F Description

Powerex CM100TJ-24F is an IGBT module rated at 1200 V and 100 A. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the CM100TJ-24F, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Powerex CM100TJ-24F is used for AC Motor Control, UPS and Battery Powered Supplies.

Key Specifications

CM100TJ-24F is a 1200 V / 100 A IGBT module from Powerex. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Powerex
Product type	IGBT module

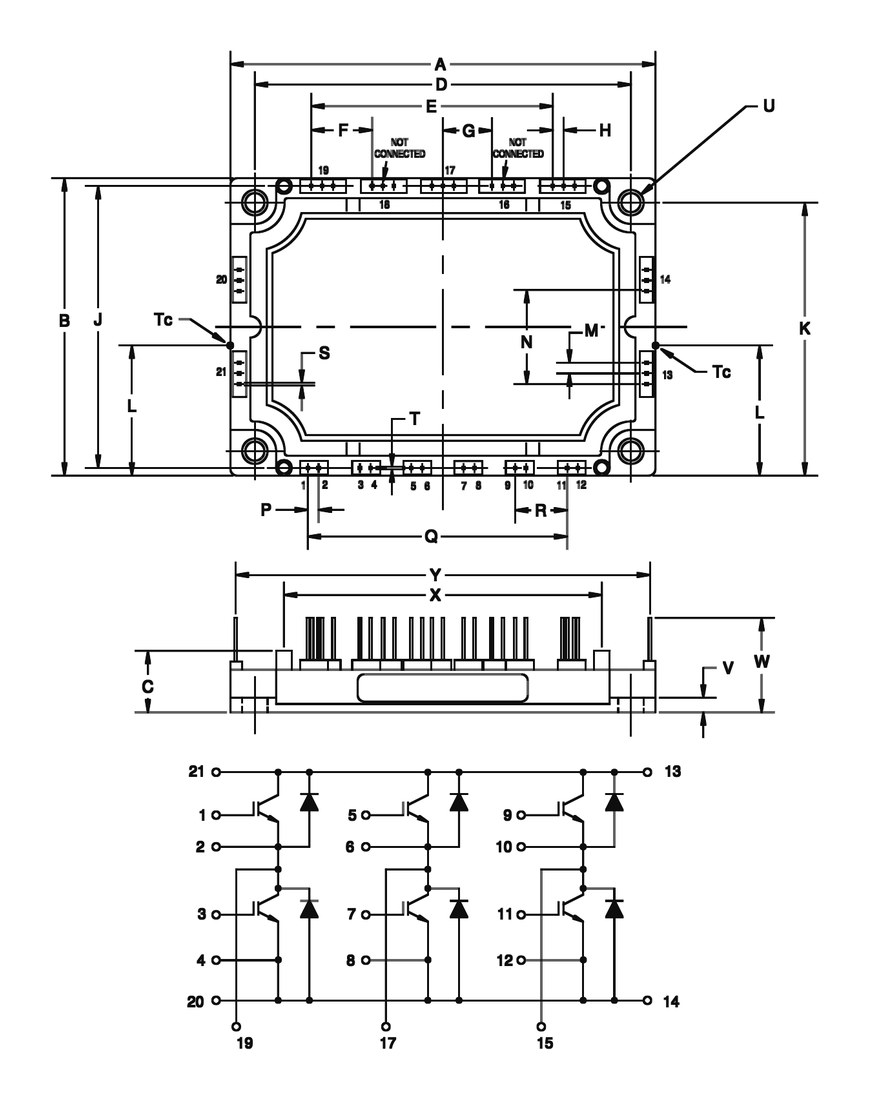

Configuration	Six-pack (3-phase bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	100 A (Tc = 25 °C)
Peak collector current (ICM)	200 A
Collector-emitter saturation voltage (VCE(sat))	1.8 V typ / 2.4 V max (IC = 100 A, VGE = 15 V, Tj = 25 °C)
Max collector dissipation (Pc)	390 W (Tc = 25 °C)
Isolation voltage (Viso)	2500 V (AC 1 min)
Junction temperature (Tj)	-40 to 150 °C
Datasheet	Available on this page (PDF)
