TM90DZ-M Mitsubishi - Thyristor / Diode Module

TM90DZ-M Description

Mitsubishi Electric TM90DZ-M is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

Need the TM90DZ-M? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi TM90DZ-M is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM90DZ-M is a 90 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	90 A

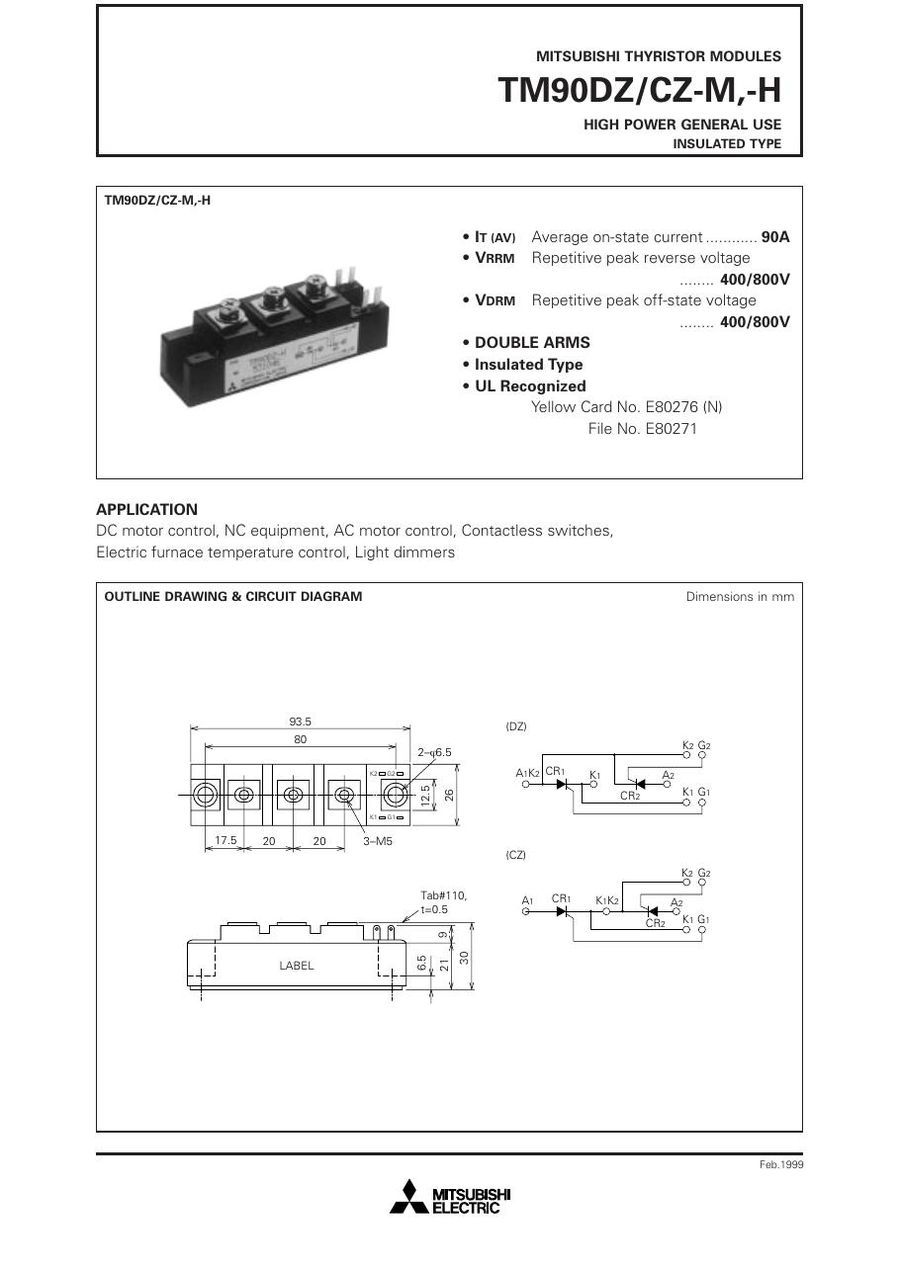

Datasheet	Available on this page (PDF)
