TM90CZ-HMitsubishi - Thyristor / Diode Module

TM90CZ-H Description

The Mitsubishi Electric TM90CZ-H is a thyristor module rated at 800 V and 90 A, available from USComponent. This type of device is widely used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM90CZ-H.

Target Applications

Mitsubishi TM90CZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	800 V
Rated current	90 A

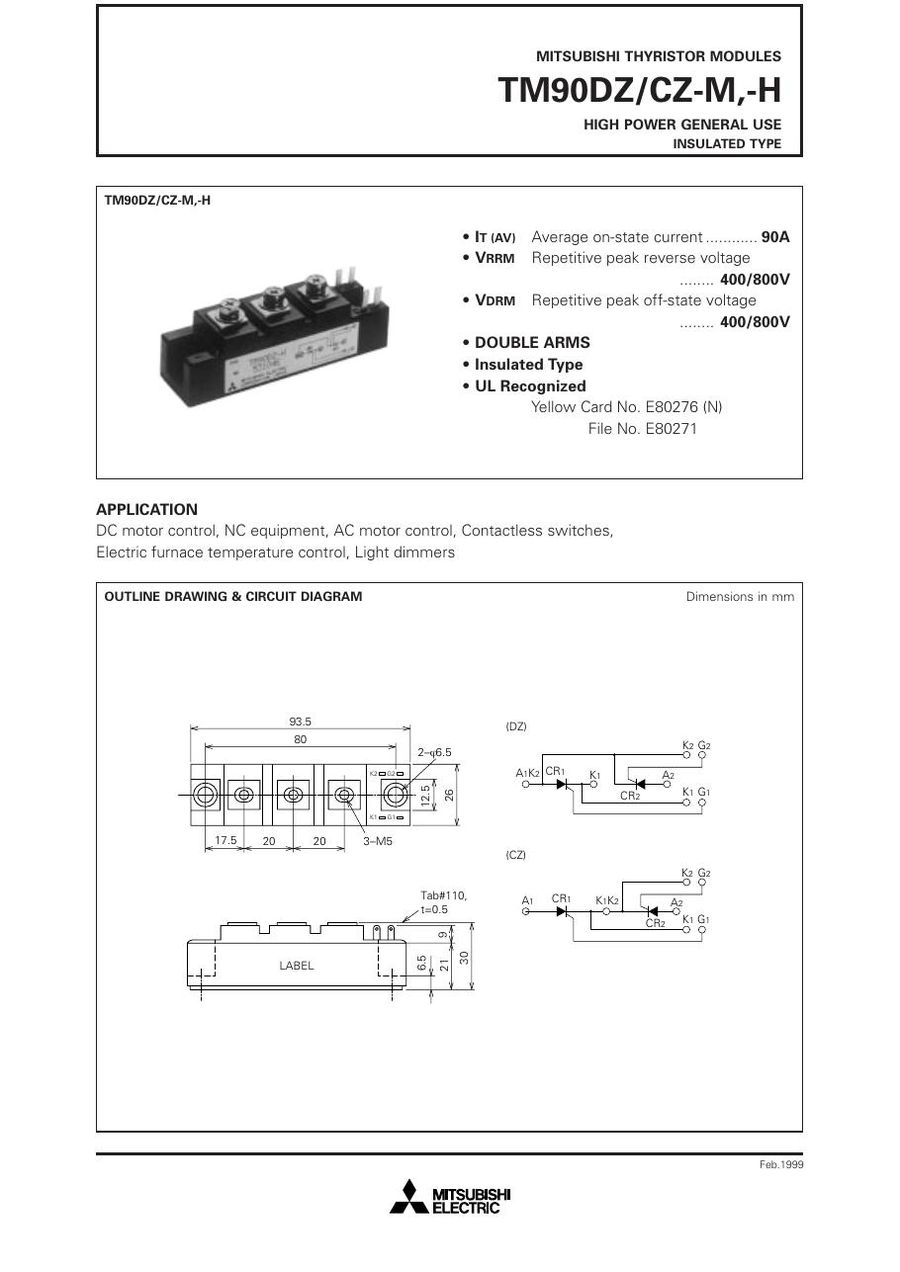

Download TM90CZ-H Datasheet

TM90CZ-H PDF Datasheet
