TM55CZ-H Mitsubishi - Thyristor / Diode Module

TM55CZ-H Description

Rated at 800 V and 55 A, the Mitsubishi Electric TM55CZ-H is a thyristor module. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the TM55CZ-H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi TM55CZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM55CZ-H is a 55 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	55 A

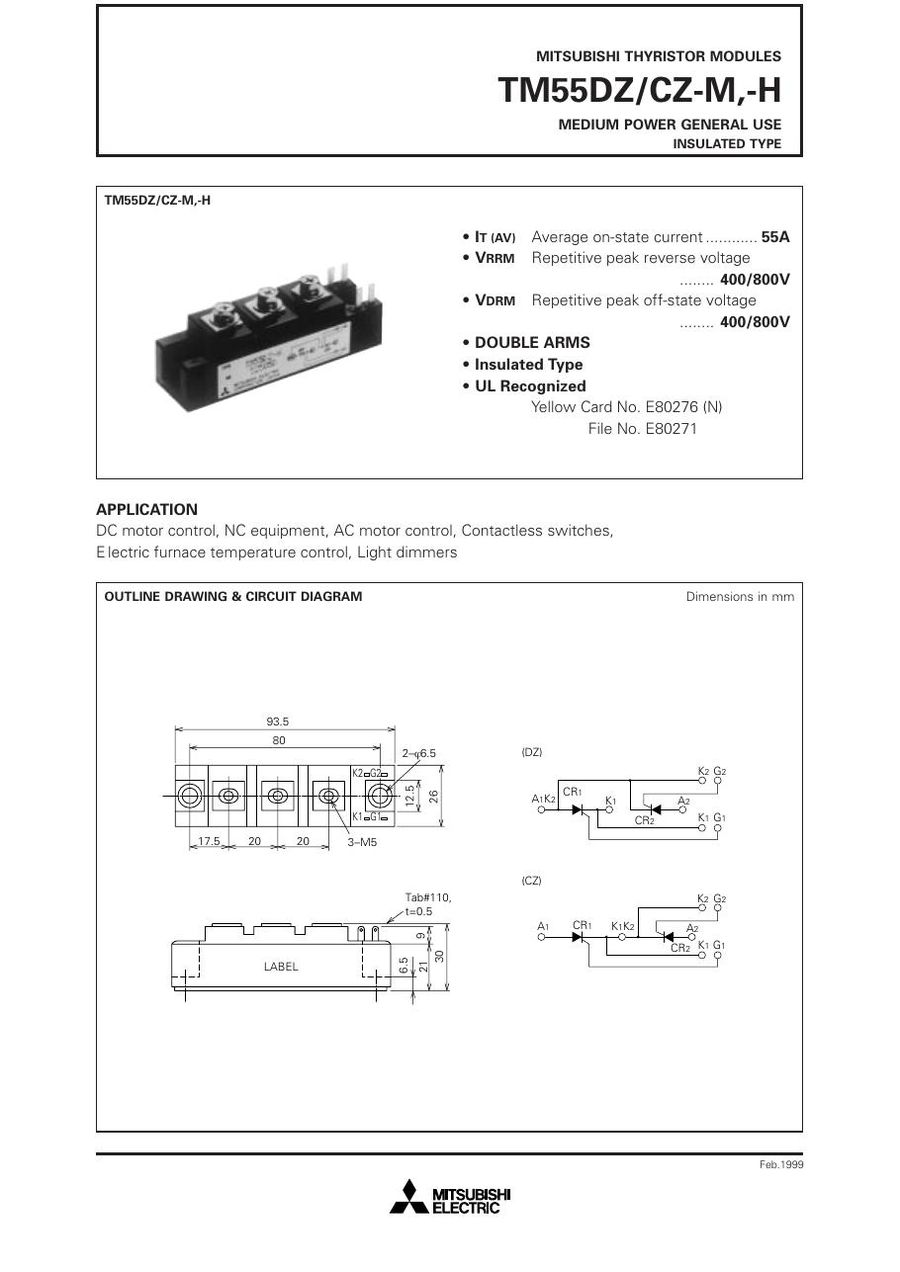

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM55CZ-H (reply within 24 hours)
