TM25T3A-M Mitsubishi - Thyristor / Diode Module

TM25T3A-M Description

TM25T3A-M is a 400 V, 20 A thyristor module made by Mitsubishi Electric. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the TM25T3A-M; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi TM25T3A-M is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM25T3A-M is a 25 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	25 A

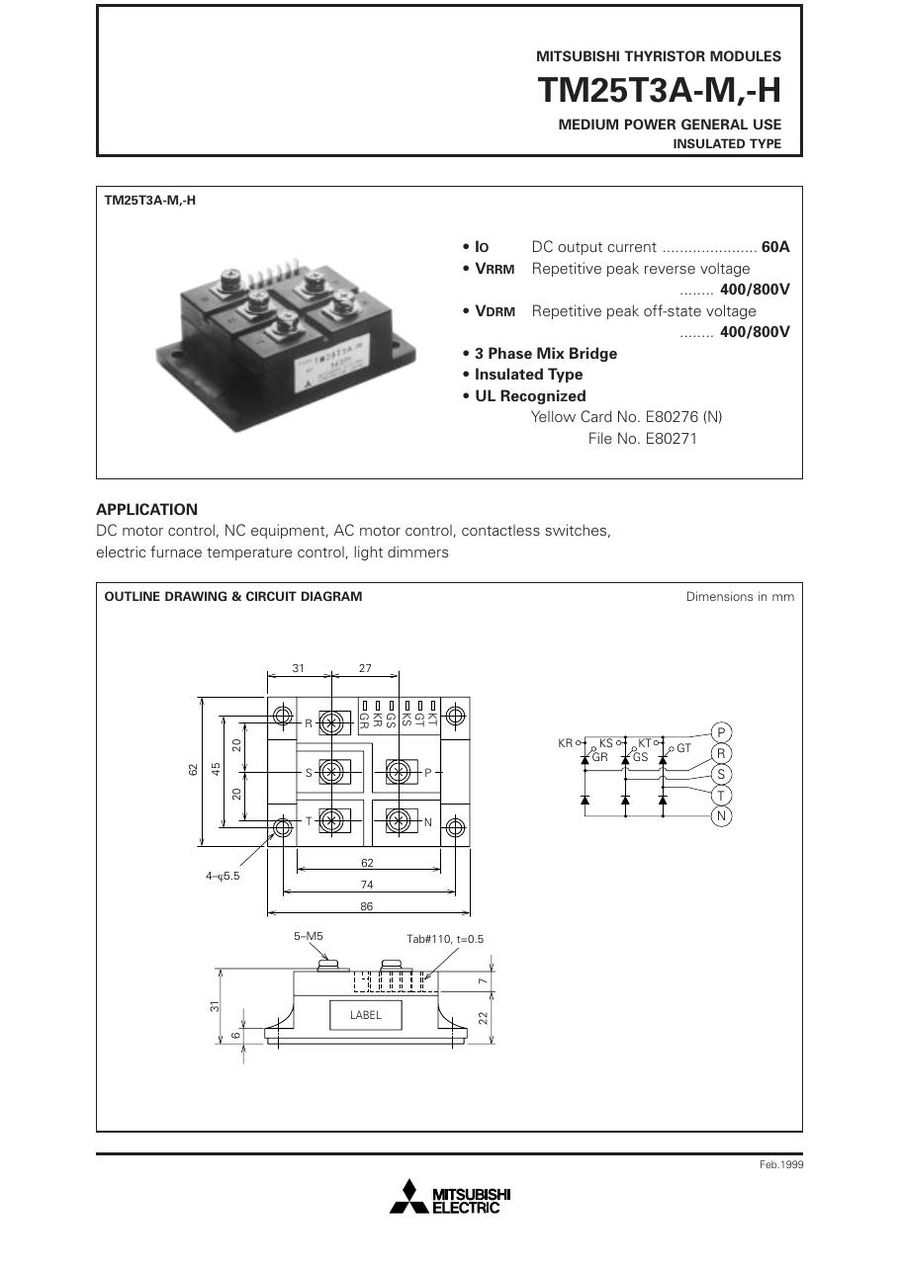

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM25T3A-M (reply within 24 hours)
