TM200CZ-2HMitsubishi - Thyristor / Diode Module

TM200CZ-2H Description

Mitsubishi Electric TM200CZ-2H is a thyristor module rated at 1600 V and 200 A. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM200CZ-2H.

Target Applications

Mitsubishi TM200CZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	1600 V
Rated current	200 A

Download TM200CZ-2H Datasheet

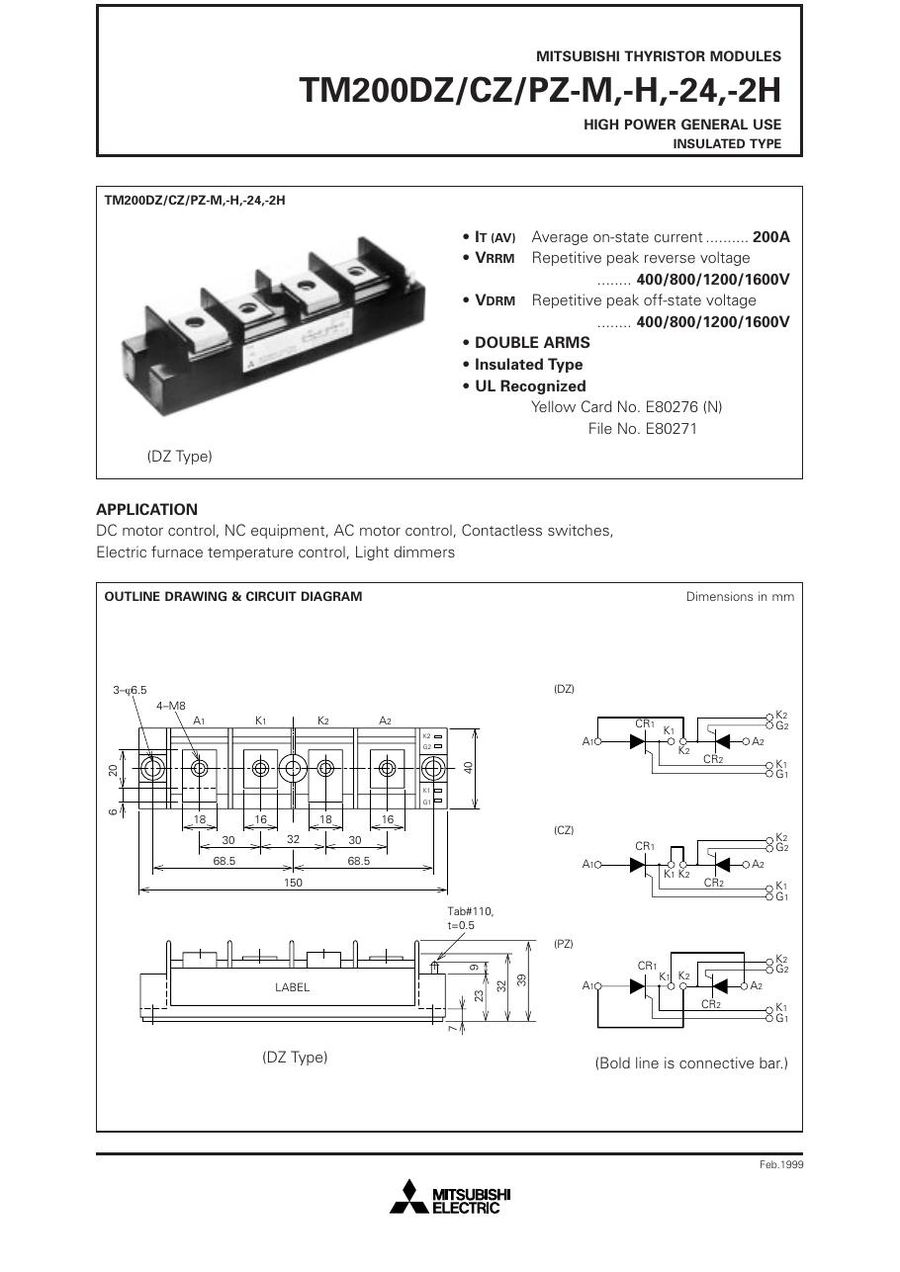

TM200CZ-2H PDF Datasheet
