TM400CZ-24 Mitsubishi - Thyristor / Diode Module

Category: Thyristor & SCR Modules

Specifications: 1200V, 400A

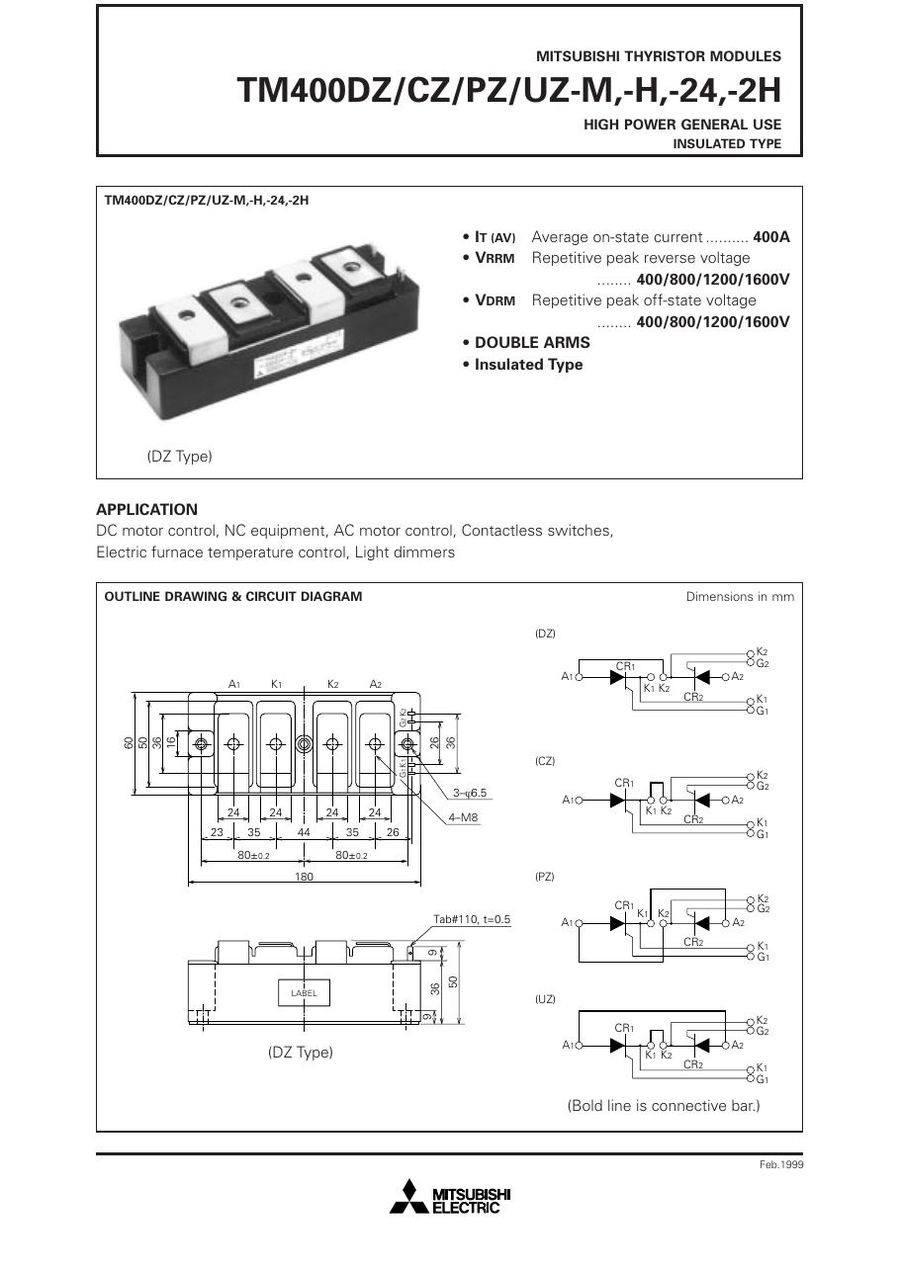

TM400CZ-24 Mitsubishi Thyristor / Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

TM400CZ-24 Description

Mitsubishi Electric makes the TM400CZ-24, a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the TM400CZ-24, and please confirm ratings against the datasheet before ordering.

Summary of Features

TM400CZ-24 is a 1,200 V, 400 A thyristor module.

Target Applications

Mitsubishi TM400CZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM400CZ-24 is a 1,200 V, 400 A thyristor module. Source: manufacturer datasheet.

ParameterValue
Product typeThyristor module
Repetitive peak voltage (VDRM / VRRM)1,200 V
Rated on-state current400 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for TM400CZ-24 (reply within 24 hours)

Related Part Numbers

TM200CZ-24
1200V, 200A		TM130CZ-24
1200V, 130A		TM90CZ-24
1200V, 90A		TM55CZ-24
1200V, 55A
TM25CZ-24
1200V, 25A		TM400CZ-2HTM200CZ-2H
1600V, 200A		TM130CZ-2H
1600V, 130A
TM400CZ-HTM400CZ-MTM400DZ-24TM400DZ-H
TM400DZ-MTM400HA-24TM400HA-24HTM400HA-2H
