TM400CZ-2H Mitsubishi - Thyristor / Diode Module

TM400CZ-2H Description

Mitsubishi Electric TM400CZ-2H is a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the TM400CZ-2H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi TM400CZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM400CZ-2H is a 400 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	400 A

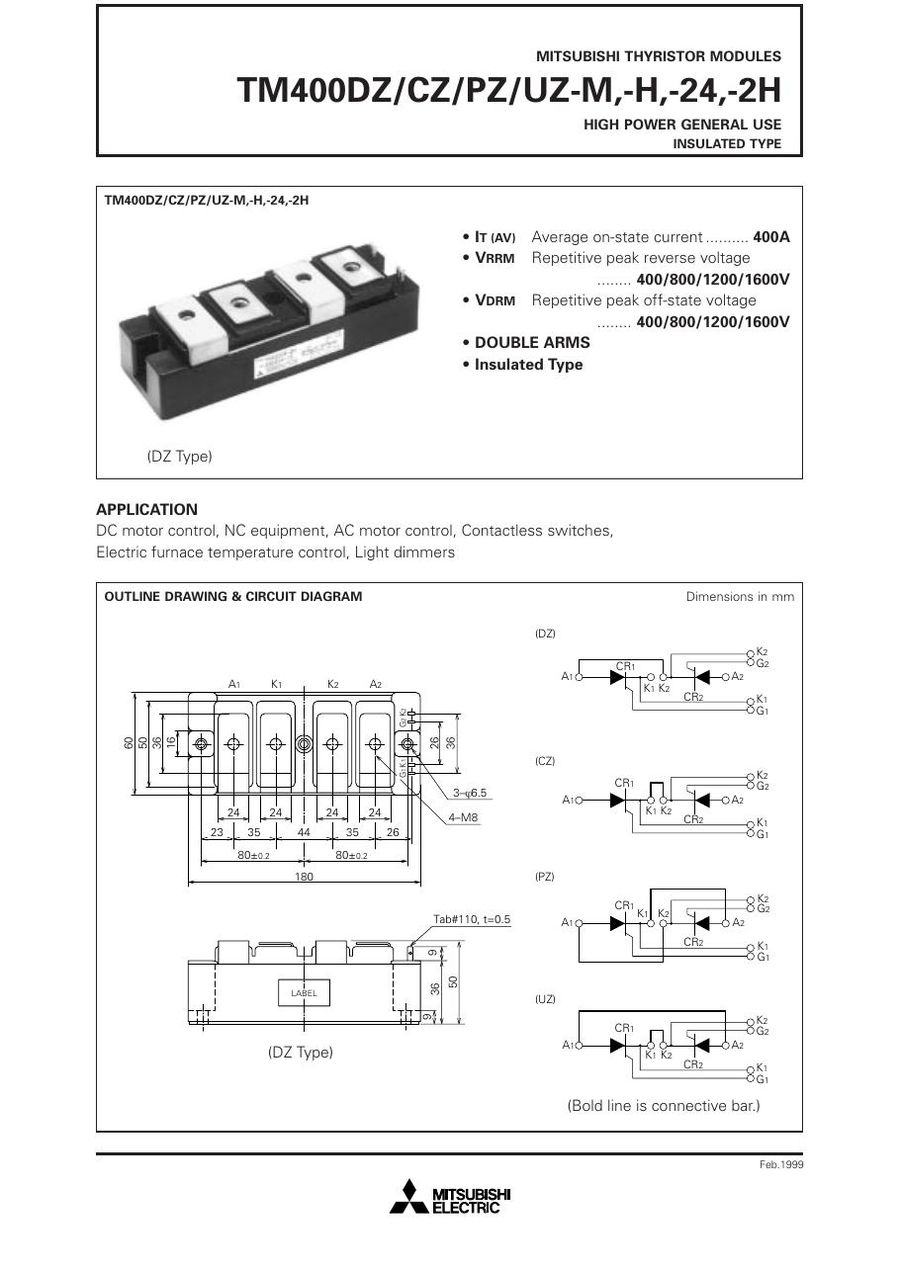

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM400CZ-2H (reply within 24 hours)
