TM10T3B-HMitsubishi - Thyristor / Diode Module

TM10T3B-H Description

The Mitsubishi Electric TM10T3B-H is a thyristor module rated at 800 V and 20 A. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM10T3B-H.

Target Applications

Mitsubishi TM10T3B-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	800 V
Rated current	20 A

TM10T3B-H Video

Download TM10T3B-H Datasheet

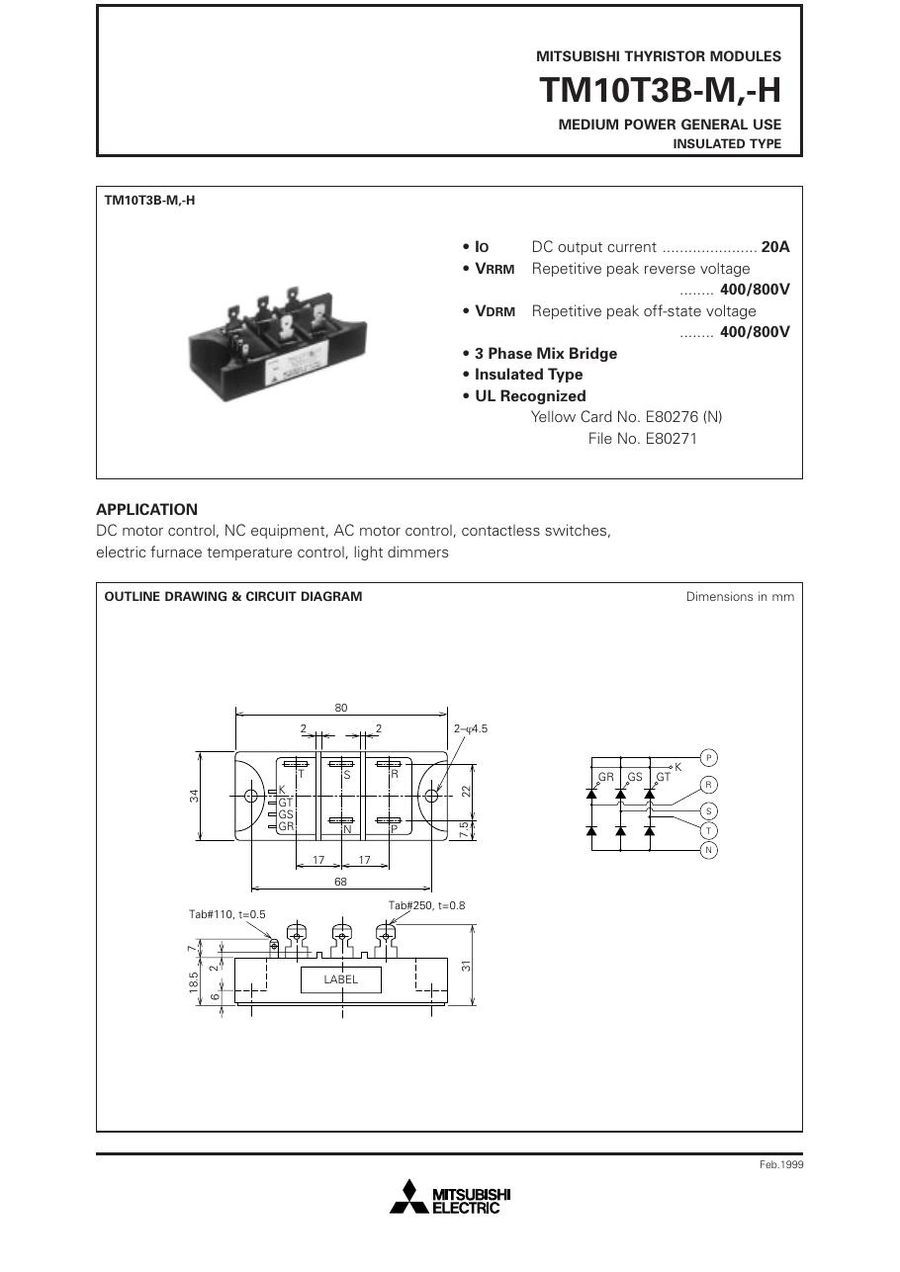

TM10T3B-H PDF Datasheet
