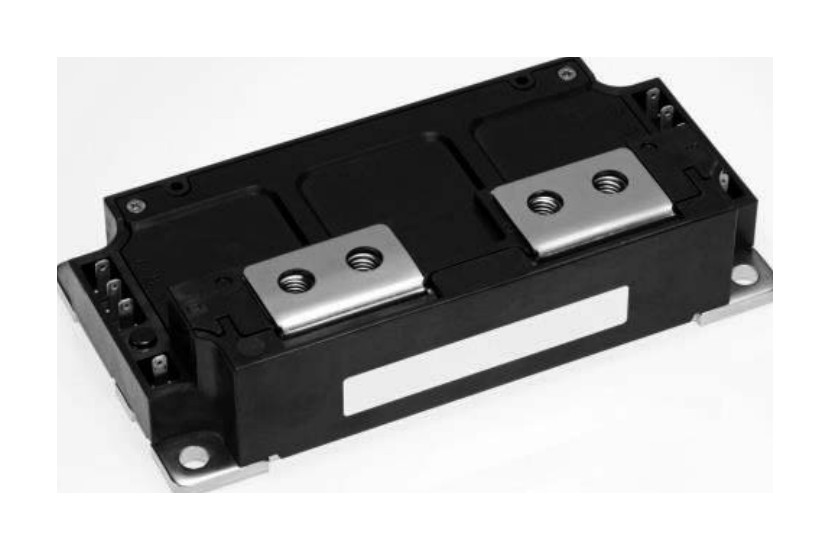

RM1400HA-24S Mitsubishi - Diode Module

RM1400HA-24S Description

RM1400HA-24S is a 1,200 V / 1,400 A single diode module from Mitsubishi Electric, S series (6th generation). Datasheet ratings: forward current 1,400 A DC, surge current 3,526 A, forward voltage 2.03 V typ., 4,000 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power.

USComponent supplies RM1400HA-24S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM1400HA-24S is used for AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power and Wind power.

Key Specifications

RM1400HA-24S is a 1,200 V / 1,400 A single diode module from Mitsubishi Electric, S series (6th generation). Source: Mitsubishi Electric datasheet (October 2016).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Diode module
Series	S series (6th generation)
Configuration	Single diode
Repetitive peak reverse voltage (VRRM)	1,200 V
Forward current (IF, DC)	1,400 A
Surge forward current (IFSM, 60 Hz half wave)	3,526 A
Forward voltage VF (terminal), IF = 1,400 A, Tvj = 25 °C	2.03 V typ. / 2.48 V max.
Isolation voltage (Visol, AC 1 min)	4,000 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mounting torque (main terminals)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mass (typ.)	490 g
Supply status (Mitsubishi)	In production
Applications (datasheet)	AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power, etc.
Datasheet	Available on this page (PDF)
