QM150E2Y-HMitsubishi - Power Transistor Module

QM150E2Y-H Description

Mitsubishi Electric QM150E2Y-H is a Darlington transistor module rated at 600 V and 150 A. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM150E2Y-H.

Summary of Features

Target Applications

Mitsubishi QM150E2Y-H is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM150E2Y-H is a 150 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

Download QM150E2Y-H Datasheet

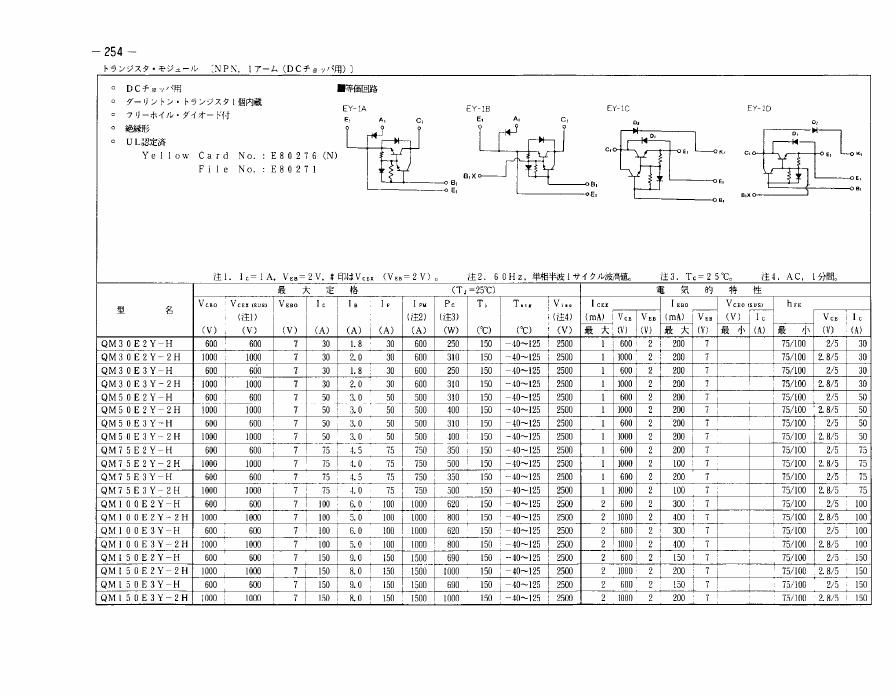

QM150E2Y-H PDF Datasheet
