QM150E2Y-2HMitsubishi - Power Transistor Module

QM150E2Y-2H Description

Mitsubishi Electric QM150E2Y-2H is a Darlington transistor module rated at 600 V and 150 A. Darlington Independent Power Module - 3-Stage Darlington. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM150E2Y-2H.

Summary of Features

Target Applications

Mitsubishi QM150E2Y-2H is used for Inverters, Servo drives, DC.

Key Specifications

QM150E2Y-2H is a 150 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

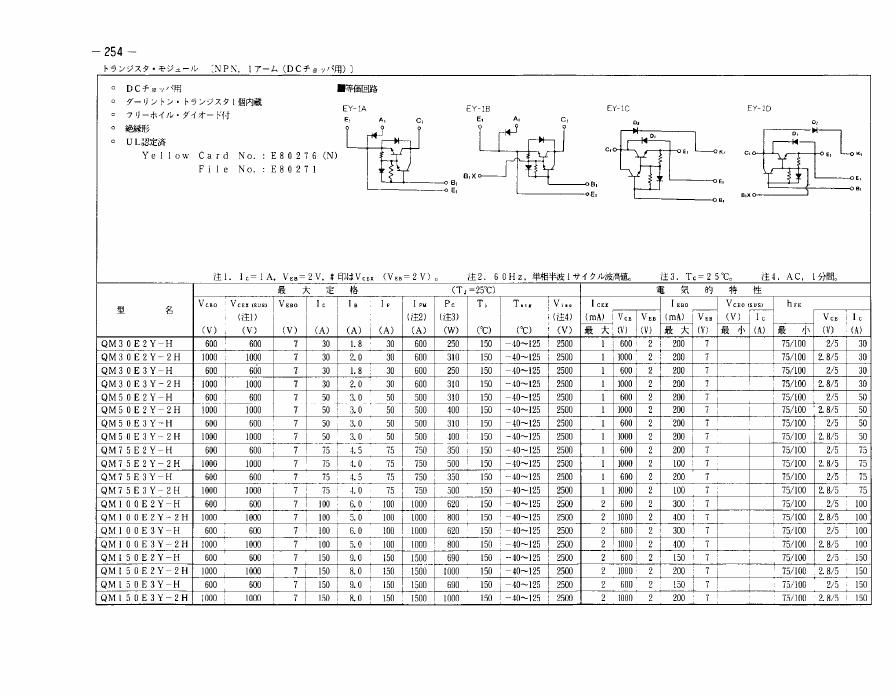

Download QM150E2Y-2H Datasheet

QM150E2Y-2H PDF Datasheet
