QM30E2Y-HMitsubishi - Power Transistor Module

QM30E2Y-H Description

The Mitsubishi Electric QM30E2Y-H is a Darlington transistor module rated at 600 V and 30 A. transistor module for medium power switching use insulated type APPLICATION DC chopper DC motor controllers Inverters. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM30E2Y-H.

Summary of Features

Target Applications

Mitsubishi QM30E2Y-H is used for DC chopper, DC motor controllers and Inverters.

Key Specifications

QM30E2Y-H is a 30 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	30 A
Datasheet	Available on this page (PDF)

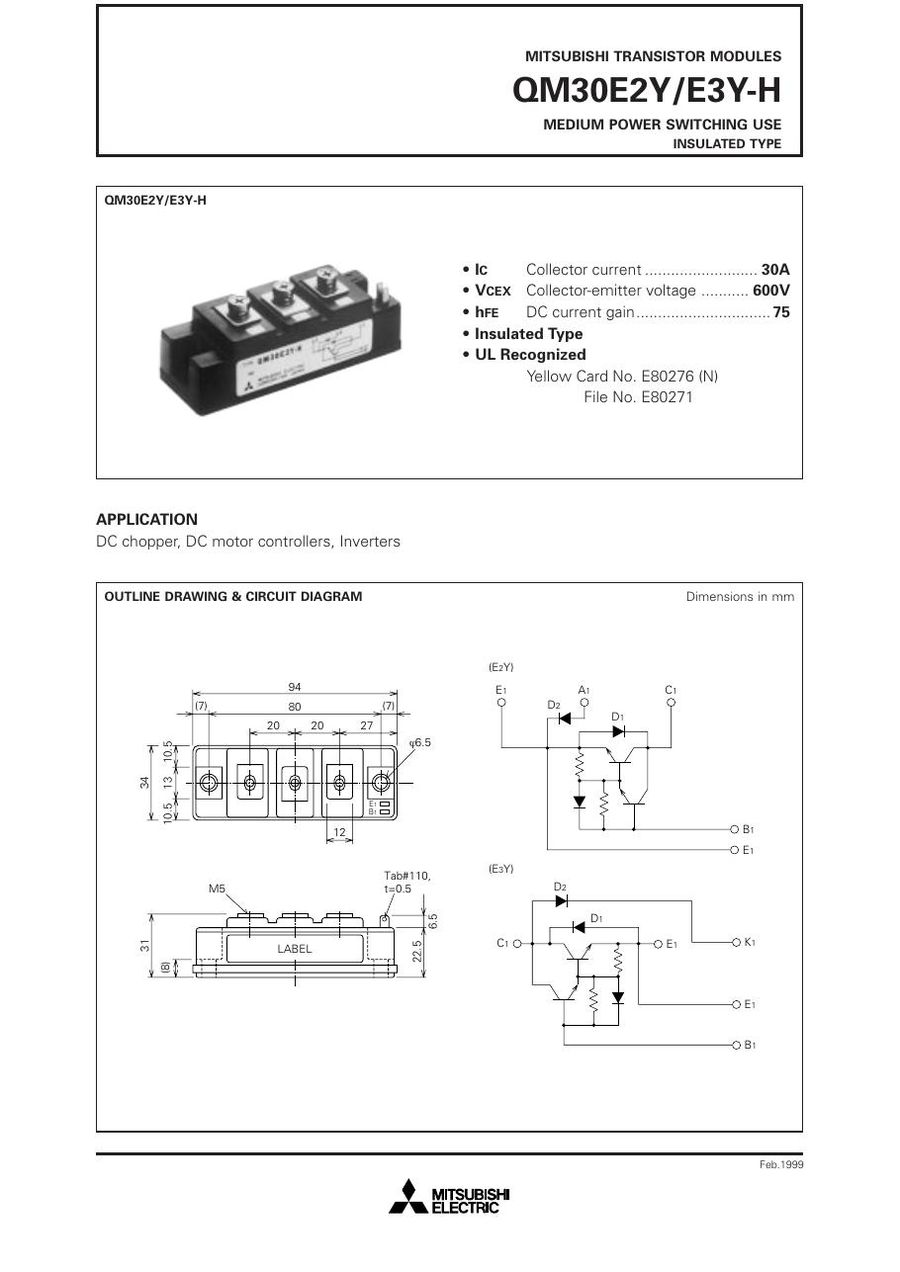

Download QM30E2Y-H Datasheet

QM30E2Y-H PDF Datasheet
