QM30E2Y-2H Mitsubishi - Power Transistor Module

QM30E2Y-2H Description

Rated at 1000 V and 30 A, the Mitsubishi Electric QM30E2Y-2H is a Darlington transistor module. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

We help engineers and repair technicians find parts like the QM30E2Y-2H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi QM30E2Y-2H is used for DC chopper, DC motor controllers and Inverters.

Key Specifications

QM30E2Y-2H is a 30 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	30 A

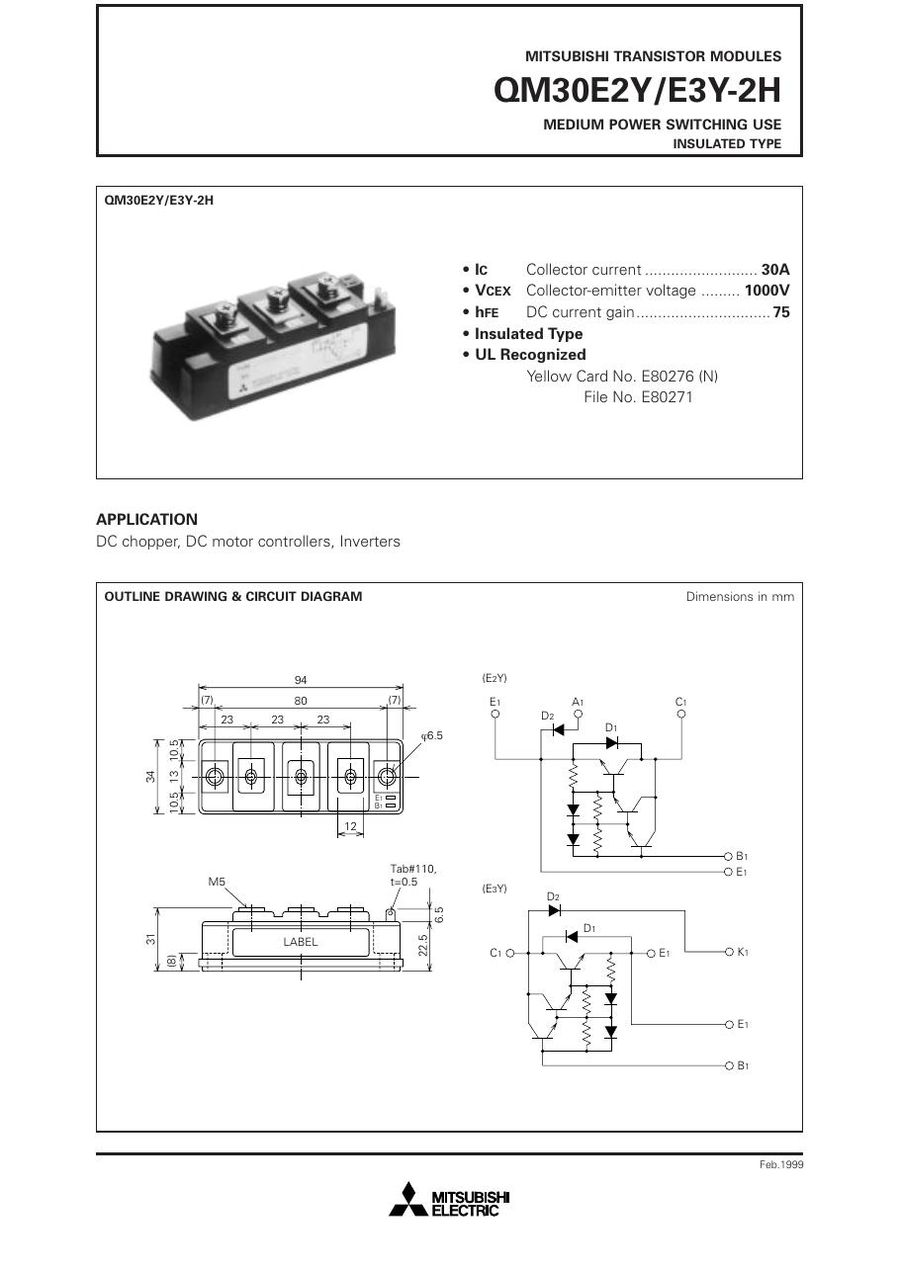

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for QM30E2Y-2H (reply within 24 hours)
