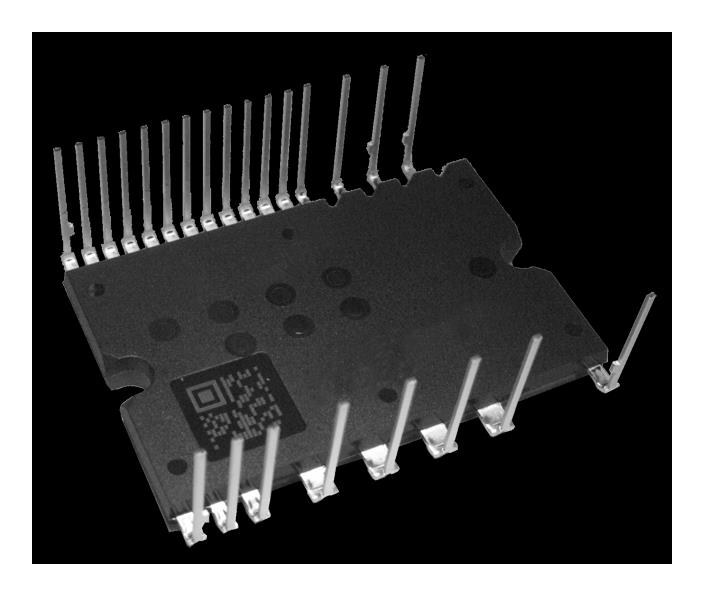

PSS20S92F6-AG Mitsubishi - Intelligent Power Module

PSS20S92F6-AG Description

PSS20S92F6-AG is a 600 V / 20 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Super Mini package). Typical applications: AC 100~240Vrms(DC voltage:400V or below) class low power motor control.

USComponent supplies PSS20S92F6-AG and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS20S92F6-AG is used for AC 100~240Vrms(DC voltage:400V or below) class low power motor control.

Key Specifications

PSS20S92F6-AG is a 600 V / 20 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.6
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	20 A
Package	Super Mini
Package size	24 x 38 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)
