PM50CL1A120 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 1200V, 50A

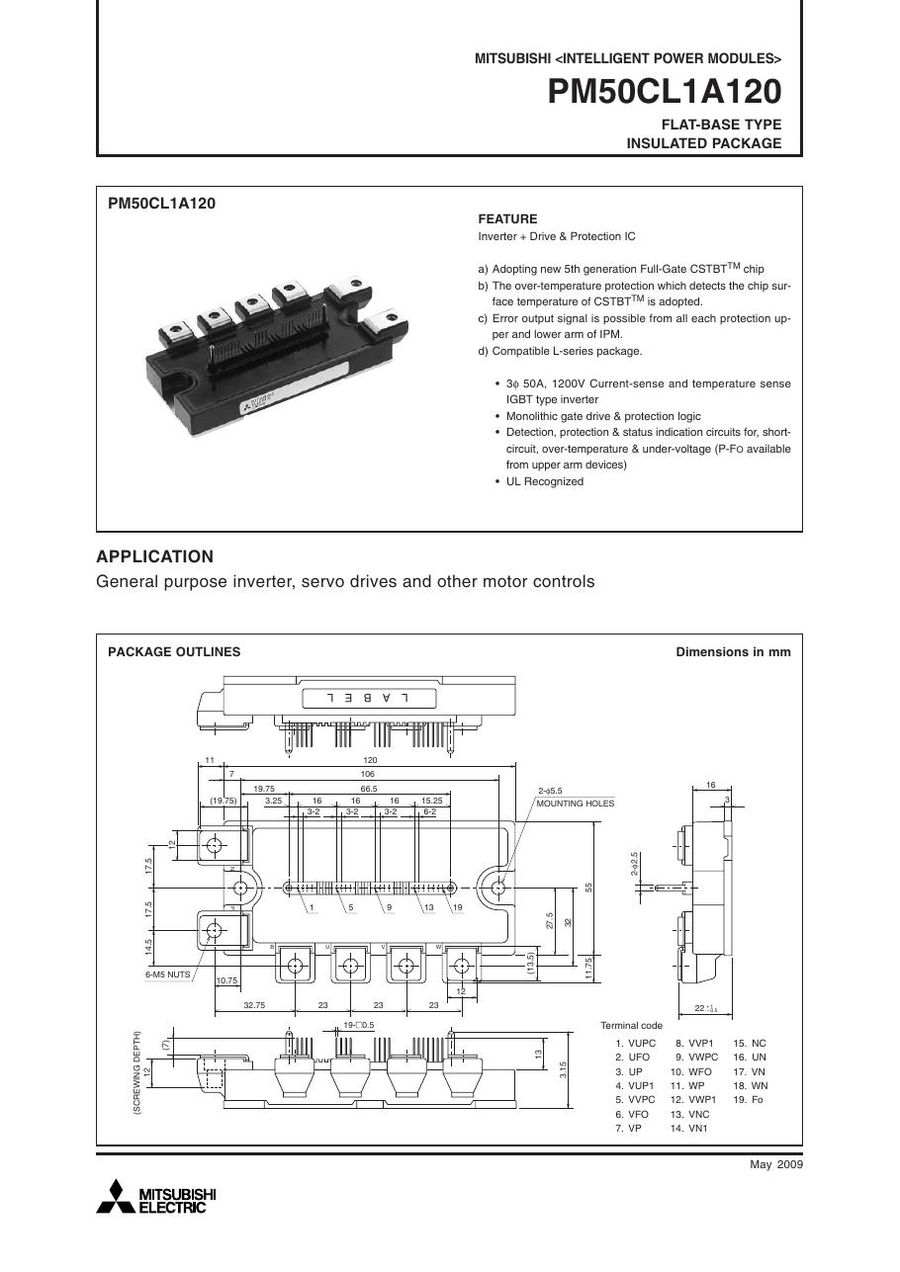

PM50CL1A120 Mitsubishi Intelligent Power Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

PM50CL1A120 Description

The PM50CL1A120 is an intelligent power module (IPM) made by Mitsubishi Electric. It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the PM50CL1A120, and please confirm ratings against the datasheet before ordering.

Summary of Features

PM50CL1A120 is a 1,200 V, 50 A intelligent power module (IPM).

Target Applications

Mitsubishi PM50CL1A120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM50CL1A120 is a 1,200 V, 50 A intelligent power module (IPM). Source: manufacturer datasheet.

ParameterValue
Product typeIntelligent power module (IPM)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC)50 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM50CL1A120 (reply within 24 hours)

Related Part Numbers

PM100CL1A120
1200V / 100A		PM150CL1A120
1200V / 150A		PM100CL1A060
600V, 100A		PM300CL1A060
600V, 300A
PM50CL1A060PM50CL1B060PM50CL1B120PM50CLA060
PM50CLA120PM50CLB060PM50CLB120PM50CBS060
PM50CEA060PM50CEF060PM50CG1AP120PM50CG1APL120
