PM50CLA060Mitsubishi - Intelligent Power Module

PM50CLA060 Description

Mitsubishi Electric PM50CLA060 is an intelligent power module (IPM) rated at 600 V and 50 A. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM50CLA060.

Summary of Features

Target Applications

Mitsubishi PM50CLA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM50CLA060 is a 600 V, 50 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

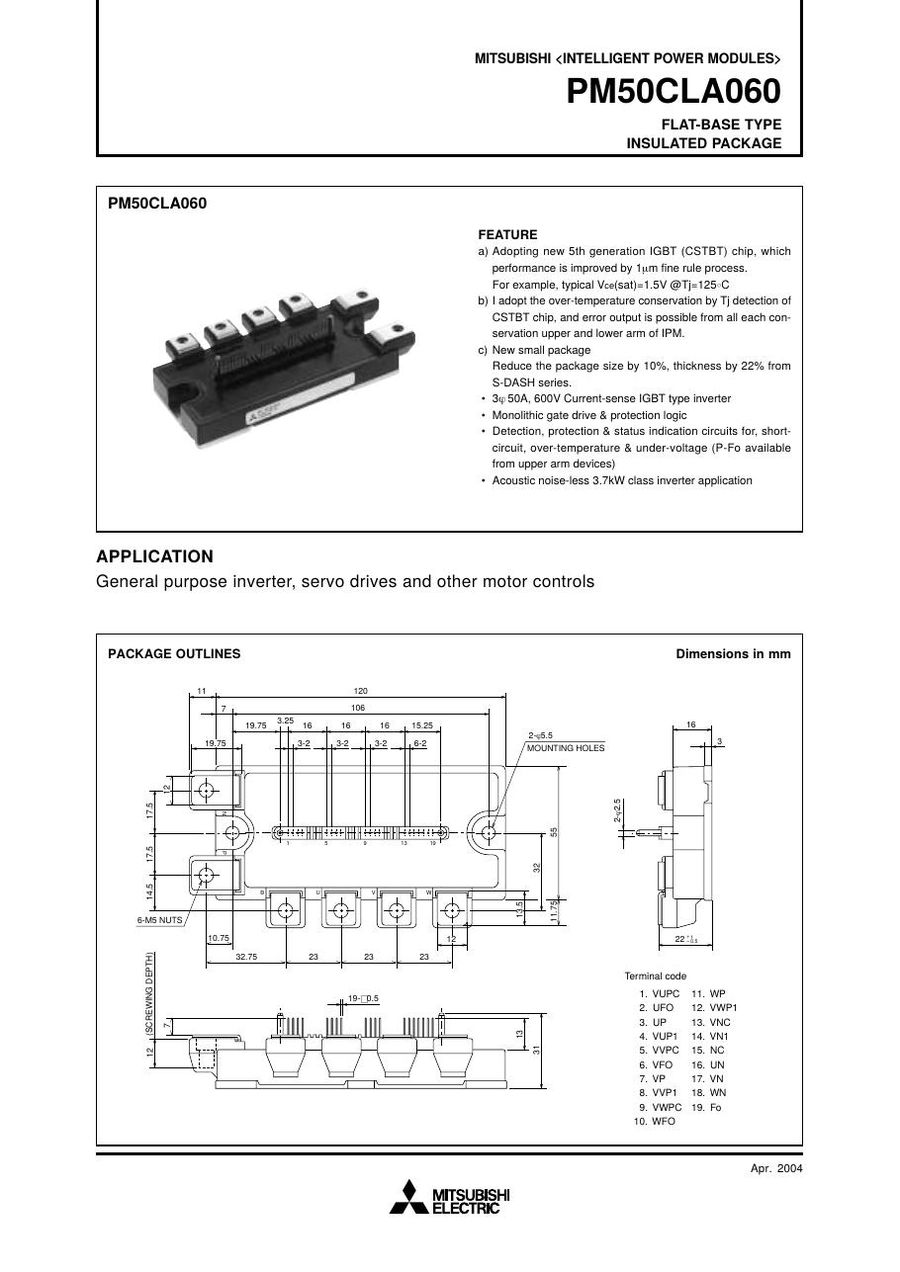

Download PM50CLA060 Datasheet

PM50CLA060 PDF Datasheet
