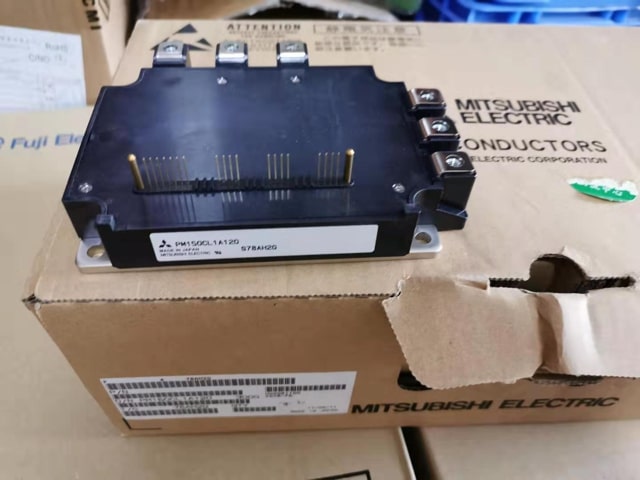

PM150CL1A120 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 1200V, 150A

PM150CL1A120 Mitsubishi Intelligent Power Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PM150CL1A120 Description

PM150CL1A120 is an intelligent power module (IPM), 3-phase inverter + drive & protection IC from Mitsubishi Electric, rated 1200V, 150A. Typical applications: General purpose inverter and servo drives and other motor controls.

USComponent supplies PM150CL1A120 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Adopting 5th generation Full-Gate CSTBT chip
  • Over-temperature protection which detects the chip surface temperature of CSTBT
  • Error output signal possible from each protection of upper and lower arm
  • Compatible L-series package
  • Monolithic gate drive & protection logic
  • Detection, protection & status indication circuits for short-circuit, over-temperature & under-voltage
  • UL recognized

Target Applications

Mitsubishi PM150CL1A120 is used for General purpose inverter and servo drives and other motor controls.

Key Specifications

PM150CL1A120 is an intelligent power module (IPM), 3-phase inverter + drive & protection IC from Mitsubishi Electric, rated 1200V, 150A. Source: manufacturer datasheet.

ParameterValue
ManufacturerMitsubishi Electric
Collector-emitter voltage VCES1200 V
Collector current ±IC (TC = 25 °C)150 A
Peak collector current ±ICP300 A
Supply voltage VCC (P-N)≤ 800 V
Isolation voltage2500 Vrms, AC 1 min
PackageFlat-base type, insulated package
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150CL1A120 (reply within 24 hours)
