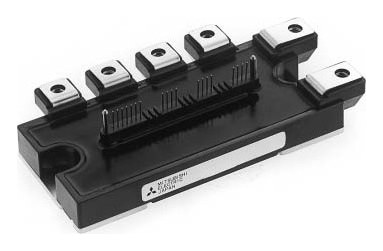

PM50CL1A060 Mitsubishi - Intelligent Power Module
PM50CL1A060 Description
PM50CL1A060 is a 600 V / 50 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (L1A - Small package). Typical applications: general purpose inverters, servo drives and other motor controls.
USComponent supplies PM50CL1A060 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 5th generation Full-Gate CSTBT chip
- Over-temperature protection that detects the chip surface temperature
- Error output signal from each protection, upper and lower arm
- Monolithic gate drive and protection logic
- Detection, protection and status indication for short circuit, over-temperature and under-voltage
- Compatible L-series package
- UL Recognized
Target Applications
Mitsubishi PM50CL1A060 is used for General purpose inverters, servo drives and other motor controls.
Key Specifications
PM50CL1A060 is a 600 V / 50 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | L1 series |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 600 V |
| Collector current (IC) | 50 A |
| Package | L1A - Small |
| Package size | 66.7 x 131 mm |
| Supply status (Mitsubishi) | Not Recommended for New Designs |
| Datasheet | Available on this page (PDF) |
Status: Mitsubishi Electric lists PM50CL1A060 as Not Recommended for New Designs. USComponent can still source PM50CL1A060 and help you find a suitable alternative.
Technical document (PDF) | Request a quote for PM50CL1A060 (reply within 24 hours)
Related Part Numbers
| PM75CL1A060 600V, 75A | PM50CL1A120 1200V, 50A | PM100CL1A060 600V, 100A | PM150CL1A060 600V, 150A |
| PM200CL1A060 600V, 200A | PM300CL1A060 600V, 300A | PM75CL1A120 1200V, 75A | PM100CL1A120 1200(V) / 100(A) |
| PM50CL1B060 600V, 50A | PM50CL1B120 1200V, 50A | PM50CLA060 600V, 50A | PM50CLA120 1200V, 50A |
| PM50CLB060 600V, 50A | PM50CLB120 1200V, 50A | PM50CHA060 600V, 50A | PM50CG1B120 1200V, 50A |
