PM200DSA060Mitsubishi - Intelligent Power Module

PM200DSA060 Description

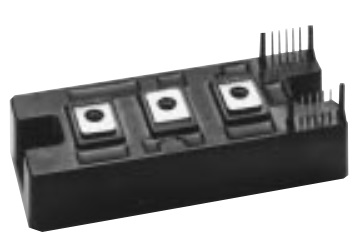

Mitsubishi Electric PM200DSA060 is an intelligent power module (IPM) rated at 600 V and 200 A. Flat-base Type Insulated Package Intelligent Power Module. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM200DSA060.

Target Applications

Mitsubishi PM200DSA060 is used for Inverters, UPS, Motion/Servo Control and Power Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), dual (single-phase, two IGBTs)
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	600 V
IC	200 A (TC = 25 °C)
ICP	400 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 1.47 - 1.96 N·m
Mounting torque	M5: 1.47 - 1.96 N·m
Weight	340 g
