PM200DHA120 Mitsubishi - Intelligent Power Module

PM200DHA120 Description

The PM200DHA120 from Mitsubishi Electric is an intelligent power module (IPM) with a 200 A rating. It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

We help engineers and repair technicians find parts like the PM200DHA120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi PM200DHA120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM200DHA120 is a 1,200 V, 200 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A

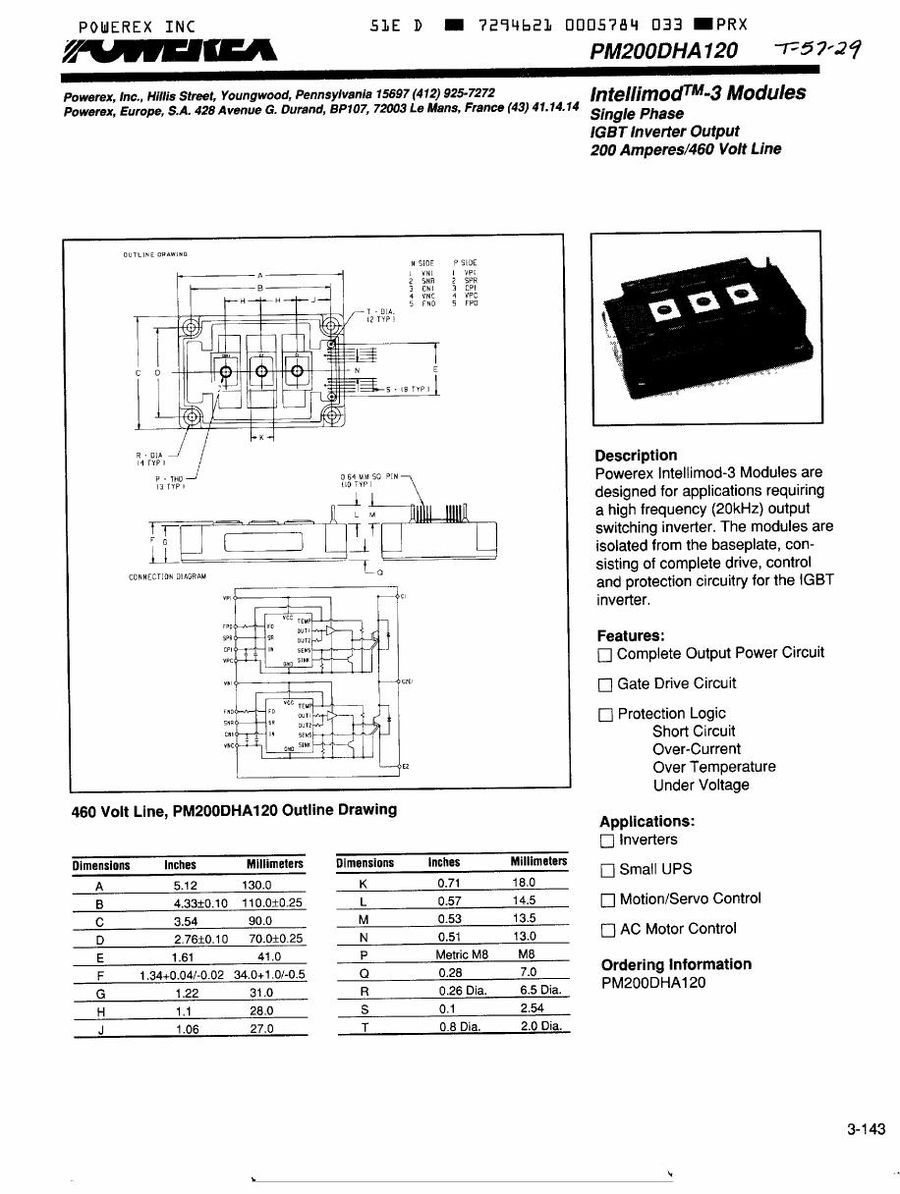

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PM200DHA120 (reply within 24 hours)
