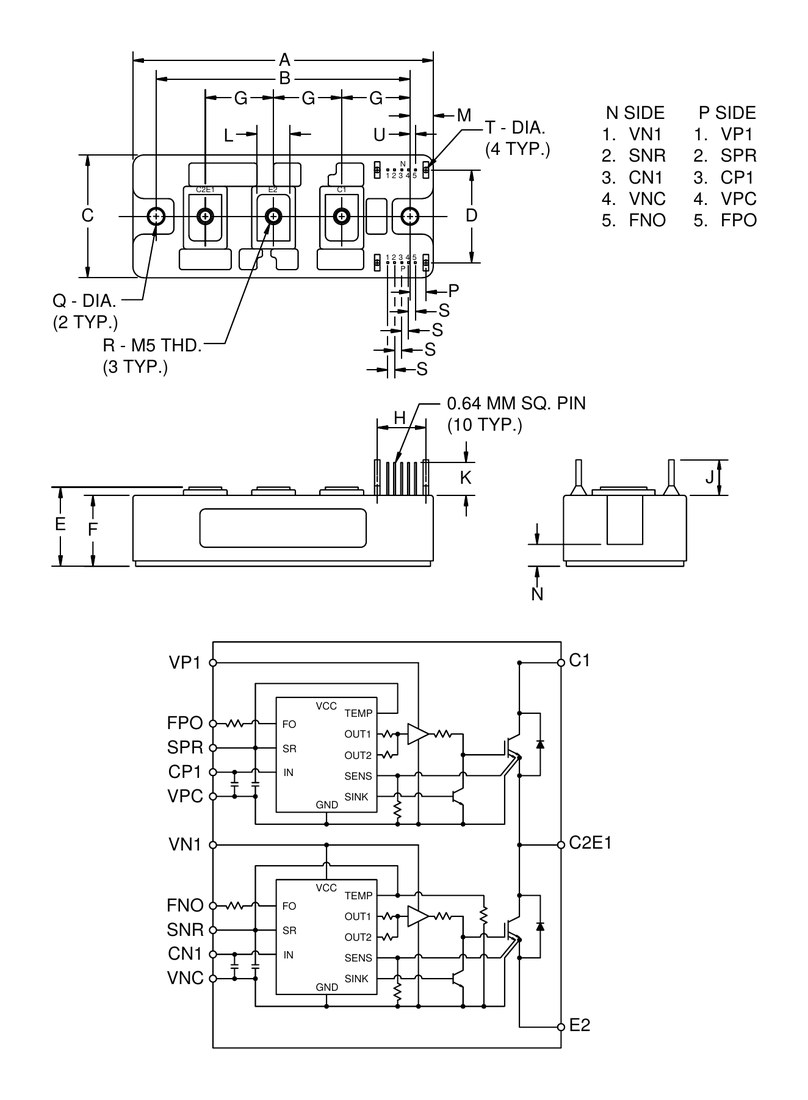

PM75DSA-120Mitsubishi - Intelligent Power Module

PM75DSA-120 Description

The Mitsubishi Electric PM75DSA-120 is an intelligent power module (IPM) rated at 1200 V and 75 A. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM75DSA-120.

Summary of Features

Target Applications

Mitsubishi PM75DSA-120 is used for Inverters, UPS, Motion/Sevo Control, Power Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Intelligent Power Module
Rated voltage	1200 V
Rated current	75 A

Download PM75DSA-120 Datasheet

Datasheet not available
