PM200DSA120 Mitsubishi - Intelligent Power Module

PM200DSA120 Description

Rated at 1200 V and 200 A, the Mitsubishi Electric PM200DSA120 is an intelligent power module (IPM). Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Looking for a replacement PM200DSA120? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

PM200DSA120 is a 1200V 200A IPM.

Target Applications

Mitsubishi PM200DSA120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Mitsubishi Intelligent Power Module (IPM), dual (single-phase, two IGBTs)
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	1200 V
IC	200 A (TC = 25 °C)
ICP (peak)	400 A
VCE(sat) typ.	2.3 V @ 200 A
Supply voltage (C1-E2)	900 V (surge 1000 V)
Supply voltage protected by OC and SC	800 V
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 3.92 - 5.88 N·m
Mounting torque	M6: 3.92 - 5.88 N·m
Weight	630 g
Junction temperature	-20 to +150 °C

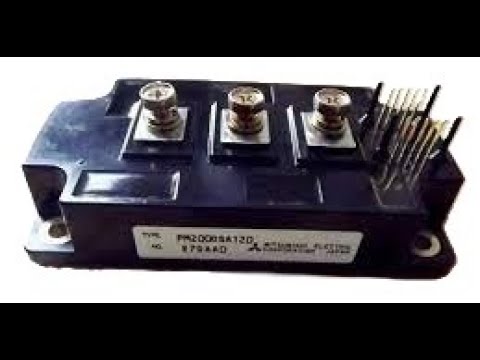

PM200DSA120 Video

Technical document (PDF)  |  Request a quote for PM200DSA120 (reply within 24 hours)
