PM150RSE120 Mitsubishi - IPM

PM150RSE120 Description

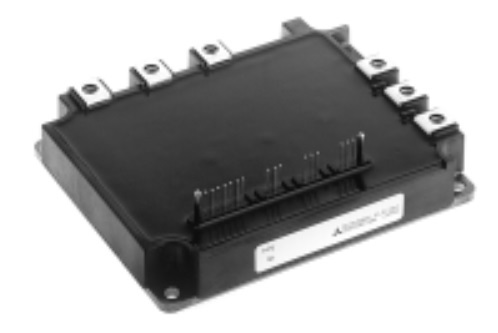

The Mitsubishi Electric PM150RSE120 is an intelligent power module (IPM), rated for 1200 V and 150 A. It is built with six switches arranged as a three-phase bridge (6-in-1). An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

We help engineers and repair technicians find parts like the PM150RSE120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Target Applications

Mitsubishi PM150RSE120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), three-phase inverter + brake
Inverter VCES / IC	1200 V / ±150 A (ICP ±300 A)
Brake VCES / IC	1200 V / 50 A (ICP 100 A), current-sense brake IGBT
Isolation voltage	2500 Vrms (AC 60 Hz, 1 min)

PM150RSE120 Video

Technical document (PDF)  |  Request a quote for PM150RSE120 (reply within 24 hours)
