PM150RLA060Mitsubishi - Intelligent Power Module

PM150RLA060 Description

The Mitsubishi Electric PM150RLA060 is an intelligent power module (IPM) rated at 600 V and 150 A, available from USComponent. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM150RLA060.

Summary of Features

Target Applications

Mitsubishi PM150RLA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM150RLA060 is a 600 V, 150 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A
Datasheet	Available on this page (PDF)

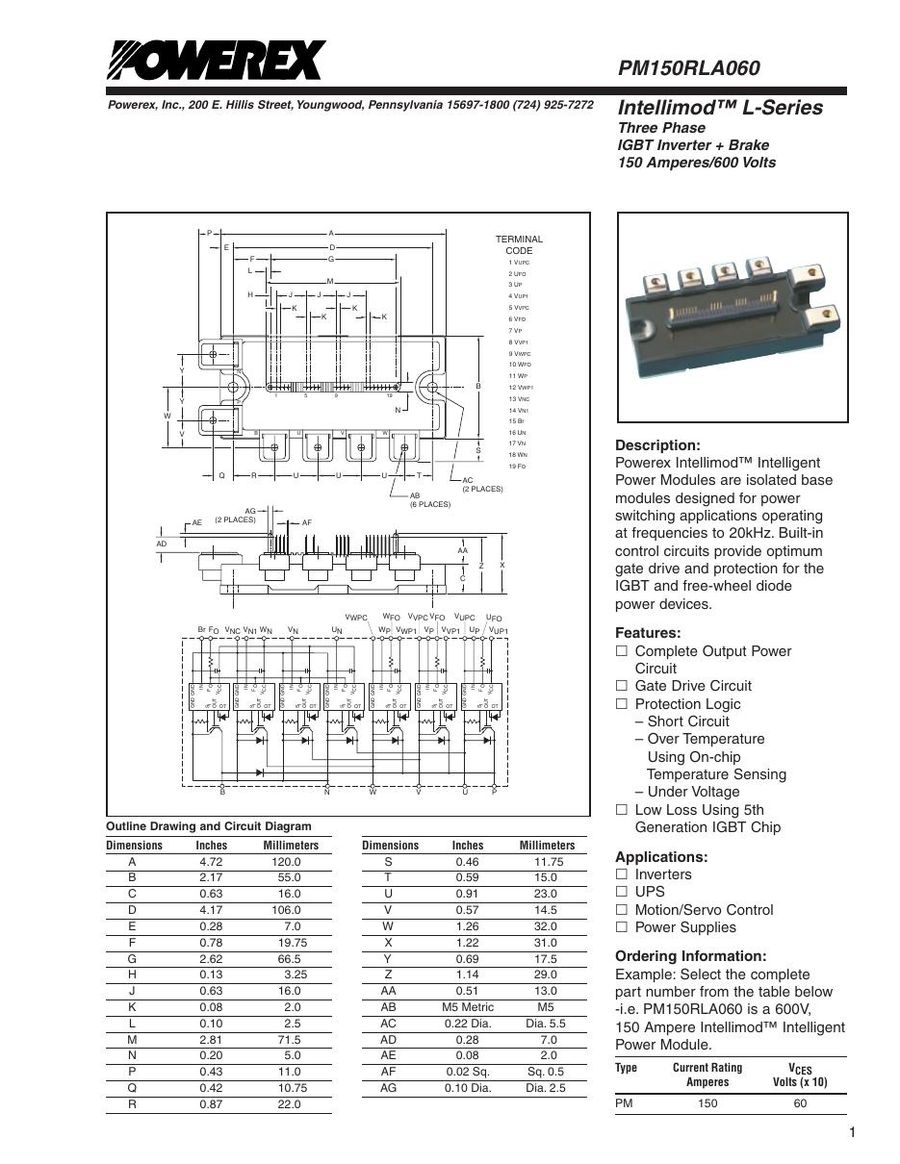

Download PM150RLA060 Datasheet

PM150RLA060 PDF Datasheet
