PM75RSE-060 Mitsubishi - IPM

Also written as: PM75RSE060

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 75A

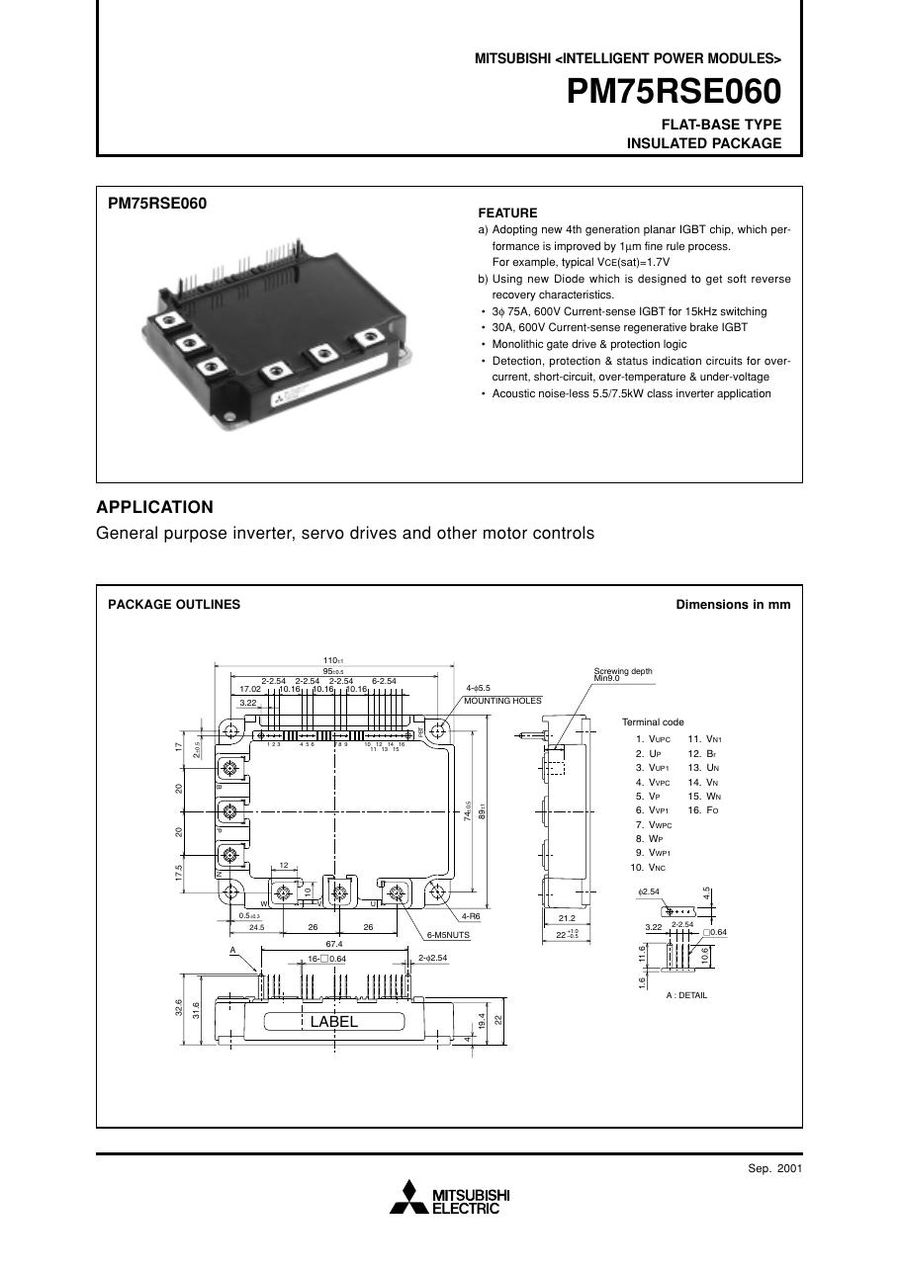

PM75RSE-060, Mitsubishi, Power Transistor Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

PM75RSE-060 Description

Mitsubishi Electric makes the PM75RSE-060, a 600 V, 75 A intelligent power module (IPM). Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the PM75RSE-060, and please confirm ratings against the datasheet before ordering.

Summary of Features

PM75RSE060 is a 600 V, 75 A intelligent power module (IPM).

Target Applications

Mitsubishi PM75RSE-060 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

ManufacturerMitsubishi Electric
CategoryPower Transistor Modules
Rated voltage600 V
Rated current75 A

Related Part Numbers

PM100RSE060
600V, 100A		PM50RSE060
600V, 50A		PM150RSE060
600V, 150A		PM75RSE120
1200V, 75A
PM200RSE060
600V, 200A		PM300RSE060
600V, 300A		PM100RSE120
100A/1200V		PM50RSE120
100A/1200V
PM75RSA060PM75RSD060PM75RSD120PM75RSK060
PM75RHA-060PM75RL1A120PM75RLA060PM75RLA120
