PM150RLB060 Mitsubishi - Intelligent Power Module

PM150RLB060 Description

The PM150RLB060 from Mitsubishi Electric is an intelligent power module (IPM) with a 600 V / 150 A rating. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the PM150RLB060; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi PM150RLB060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM150RLB060 is a 600 V, 150 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A

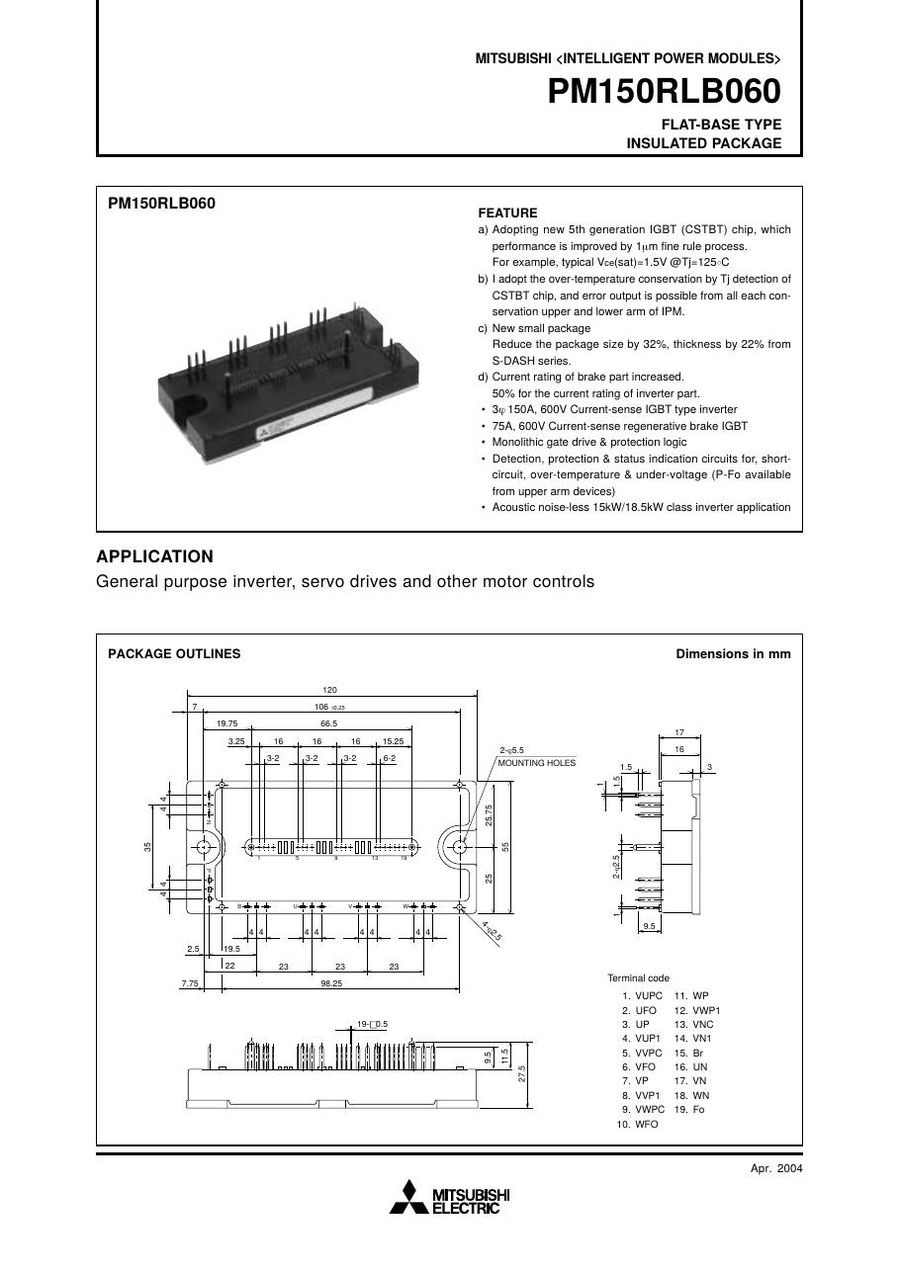

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150RLB060 (reply within 24 hours)
