PM150RSD120 Mitsubishi - Intelligent Power Module

PM150RSD120 Description

Mitsubishi Electric makes the PM150RSD120, a 1200 V, 150 A intelligent power module (IPM). An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM150RSD120 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi PM150RSD120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

PM150RSD120 is a 1,200 V, 150 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A

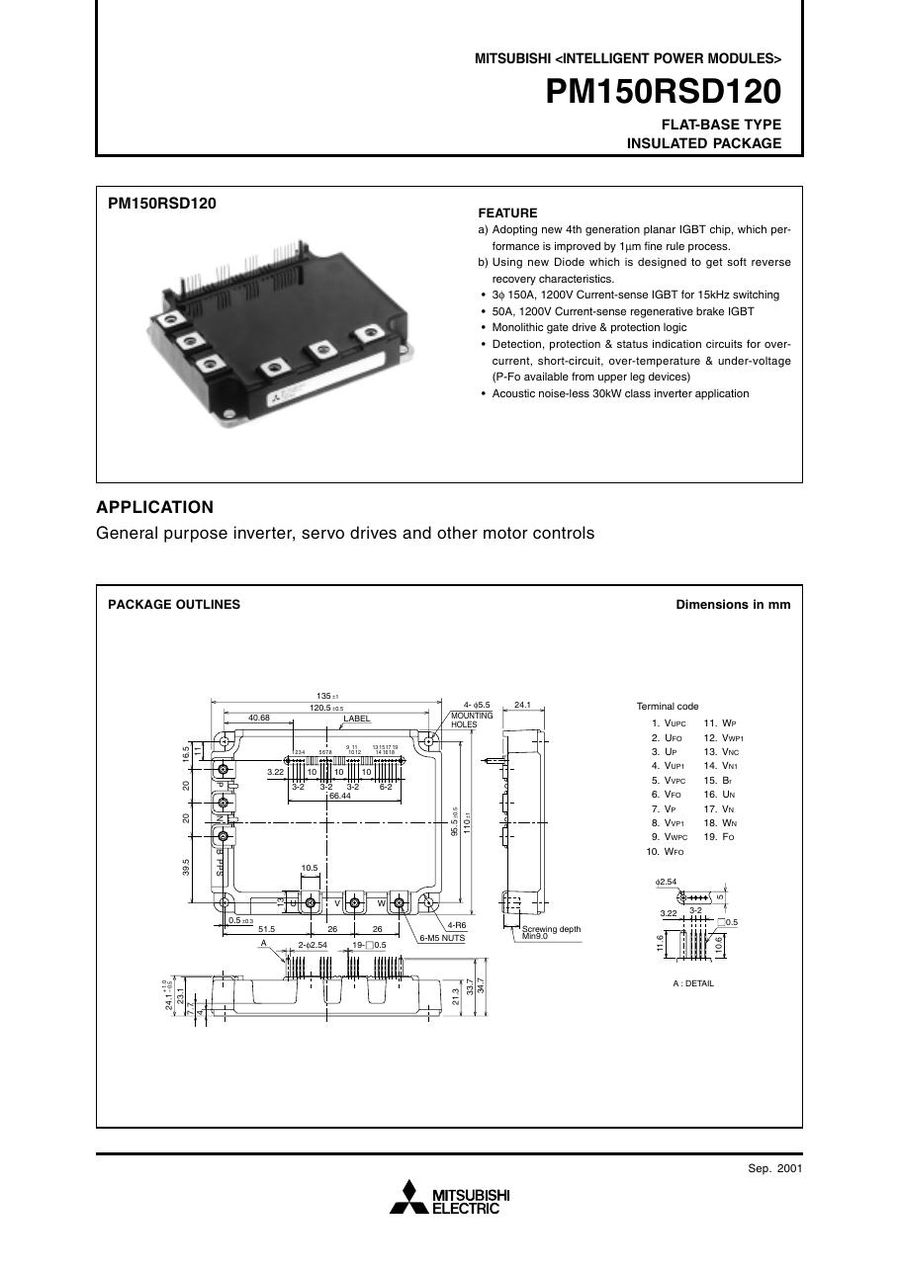

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150RSD120 (reply within 24 hours)
