PM150RSA060Mitsubishi - Intelligent Power Module

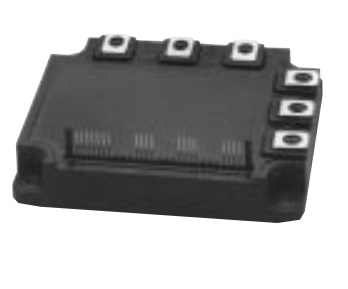

PM150RSA060 Description

The Mitsubishi Electric PM150RSA060 is an intelligent power module (IPM) rated at 600 V and 150 A. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM150RSA060.

Summary of Features

PM150RSA060 is a 600V 150A Intelligent Power Module.

Target Applications

Mitsubishi PM150RSA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Powerex (Mitsubishi)
Configuration	Intellimod Intelligent Power Module, three-phase IGBT inverter + brake
Built-in protection	Short circuit, over current, over temperature, under voltage
Inverter VCES / IC	600 V / 150 A (ICP 300 A)
Brake IC	50 A (ICP 100 A)
Isolation voltage	2500 Vrms
Terminal torque	M5: 1.47 - 1.96 N·m
Mounting torque	M5: 1.47 - 1.96 N·m
Weight	550 g
