PM150CL1B060 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 150A

PM150CL1B060 Mitsubishi Intelligent Power Module

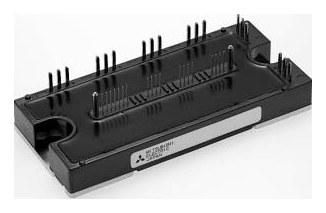

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

PM150CL1B060 Description

PM150CL1B060 is a 600 V / 150 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (L1B package). Typical applications: general purpose inverters, servo drives and other motor controls.

USComponent supplies PM150CL1B060 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 5th generation Full-Gate CSTBT chip
  • Over-temperature protection that detects the chip surface temperature
  • Error output signal from each protection, upper and lower arm
  • Monolithic gate drive and protection logic
  • Detection, protection and status indication for short circuit, over-temperature and under-voltage
  • Compatible L-series package
  • UL Recognized

Target Applications

Mitsubishi PM150CL1B060 is used for General purpose inverters, servo drives and other motor controls.

Key Specifications

PM150CL1B060 is a 600 V / 150 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIntelligent power module (IPM)
SeriesL1 series
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)600 V
Collector current (IC)150 A
PackageL1B
Package size55 x 120 mm
Supply status (Mitsubishi)Not Recommended for New Designs
DatasheetAvailable on this page (PDF)

Status: Mitsubishi Electric lists PM150CL1B060 as Not Recommended for New Designs. USComponent can still source PM150CL1B060 and help you find a suitable alternative.
