PM150CG1C120 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 1200V, 150A

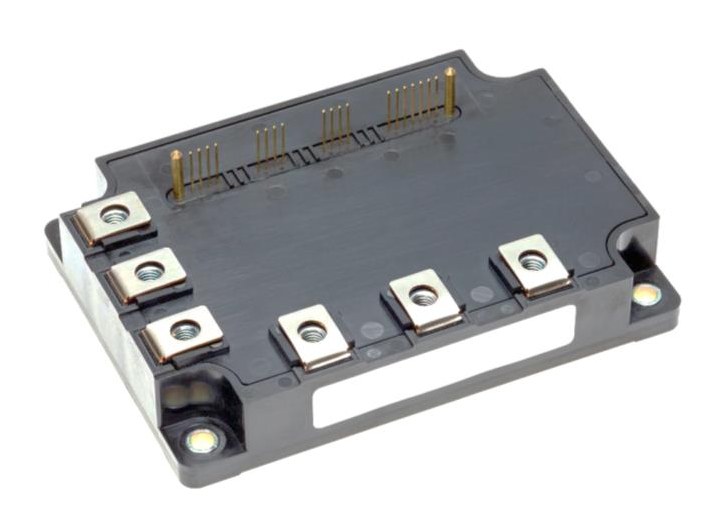

PM150CG1C120 Mitsubishi Intelligent Power Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

PM150CG1C120 Description

PM150CG1C120 is a 1200 V / 150 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (G1 C-Package package). Typical applications: general purpose inverter, servo drives and other motor controls.

USComponent supplies PM150CG1C120 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Adopting Full-Gate CSTBT chip
  • The over-temperature protection which detects the chip surface temperature of CSTBT is adopted
  • Error output signal is available from each protection upper and lower arm of IPM
  • Outputting an error signal corresponding to the abnormal state (error mode identification)
  • UL Recognized under UL1557, File No. E323585

Target Applications

Mitsubishi PM150CG1C120 is used for General purpose inverter, servo drives and other motor controls.

Key Specifications

PM150CG1C120 is a 1200 V / 150 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIntelligent power module (IPM)
SeriesG1 series
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)1200 V
Collector current (IC)150 A
Isolation voltage (Viso)2,500 V RMS
PackageG1 C-Package
Package size85 x 120 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150CG1C120 (reply within 24 hours)
