PM10RHB120 Mitsubishi - Intelligent Power Module

PM10RHB120 Description

Mitsubishi Electric PM10RHB120 is an intelligent power module (IPM) rated at 1200 V and 10 A. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Request a quote for the PM10RHB120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi PM10RHB120 is used for inverters, small UPS, motion and servo control and AC motor control.

Key Specifications

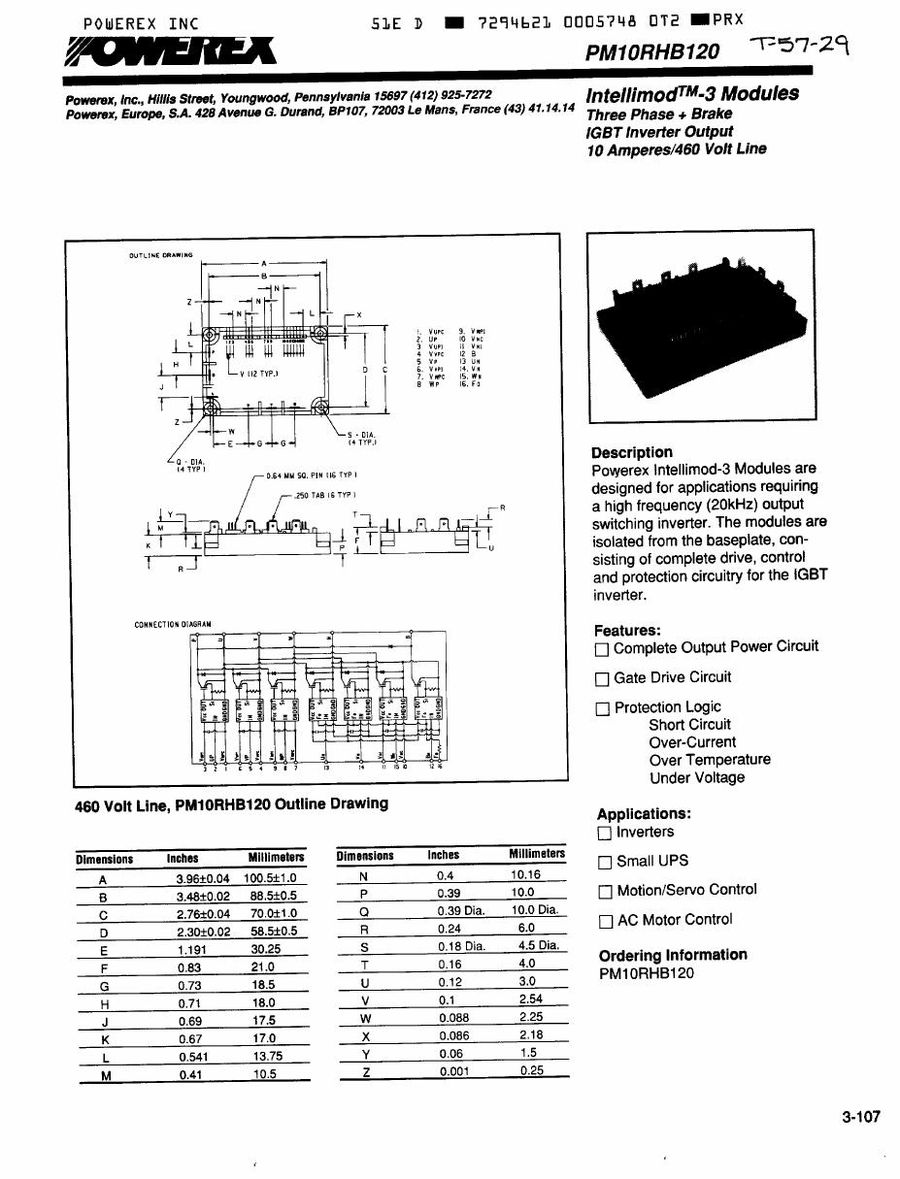

Powerex PM10RHB120 is an Intellimod-3 intelligent power module, three-phase plus brake IGBT inverter, 1,200 V, 10 A, for 460 V lines. Source: Powerex PM10RHB120 datasheet.

Parameter	Value
Product type	Intelligent power module (Intellimod-3), isolated base
Configuration	Three-phase inverter + brake
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	10 A
Peak collector current (ICP)	20 A
Supply voltage (VCC, P-N)	900 V (surge 1,000 V)
Inverter collector dissipation (PC)	63 W
Brake	1,200 V, 10 A IGBT, 25 W
Switching frequency	up to 20 kHz
Protection	Short circuit, over current, over temperature, under voltage
Isolation voltage	2,500 V AC, 1 min
Weight (typ)	330 g
Datasheet	Available on this page (PDF)
