PM10CSJ060 Mitsubishi - Intelligent Power Module

PM10CSJ060 Description

The Mitsubishi Electric PM10CSJ060 is an intelligent power module (IPM), rated for 600 V. It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

Request a quote for the PM10CSJ060 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi PM10CSJ060 is used for inverters, UPS, motion and servo control and power supplies.

Key Specifications

Mitsubishi PM10CSJ060 is a 600 V, 10 A intelligent power module (IPM), three-phase inverter with built-in gate drive and protection. Source: Mitsubishi PM10CSJ060 datasheet.

Parameter	Value
Product type	Intelligent power module (IPM), flat-base insulated package
Configuration	Three-phase inverter (6 IGBTs + free-wheel diodes)
Collector-emitter voltage (VCES)	600 V
Collector current (IC, TC = 25 °C)	10 A
Peak collector current (ICP)	20 A
Supply voltage (VCC, P-N)	450 V (surge 500 V)
Collector dissipation (PC)	39 W
PWM frequency	up to 20 kHz
Protection	Short circuit, over current, over temperature, under voltage
Isolation voltage	2,500 Vrms
Weight (typ)	60 g

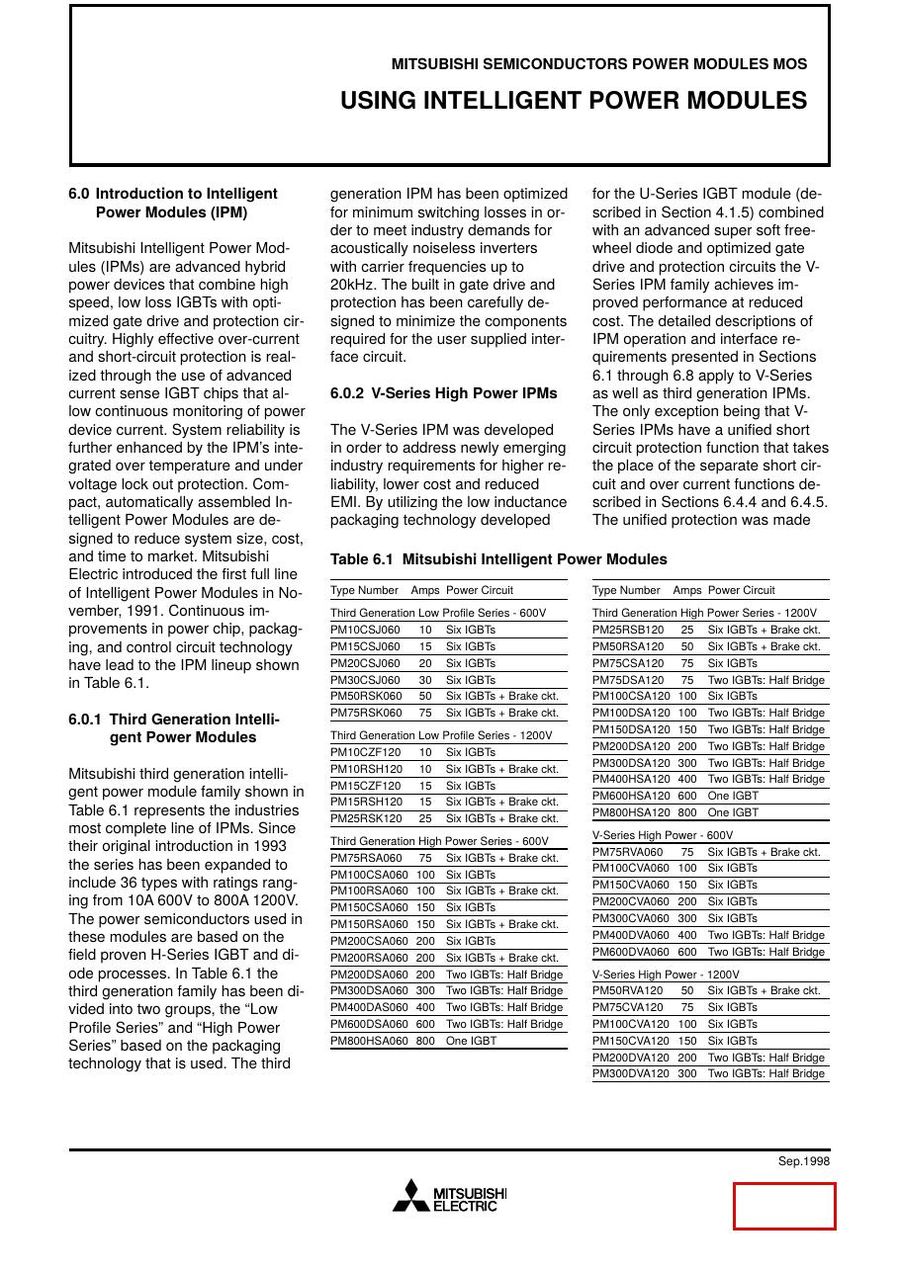

Datasheet	Available on this page (PDF)
