PM100RLB060 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 100A

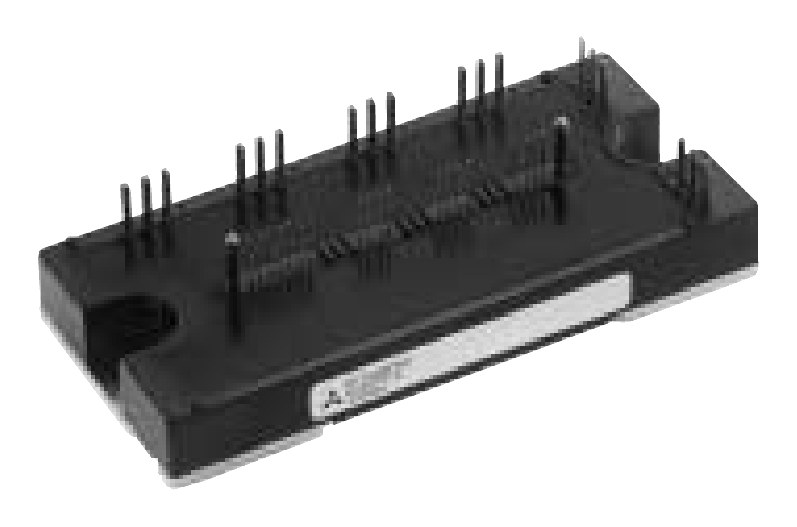

PM100RLB060, Mitsubishi, Power Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PM100RLB060 Description

PM100RLB060 is an intelligent power module (IPM), 3-phase inverter + brake from Mitsubishi Electric, rated 600V, 100A. Typical applications: General purpose inverter and servo drives and other motor controls.

USComponent supplies PM100RLB060 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 5th generation IGBT (CSTBT) chip, typical Vce(sat) = 1.5 V @ Tj = 125 °C
  • Over-temperature protection by Tj detection of CSTBT chip; error output from each upper and lower arm
  • New small package: size reduced by 32%, thickness by 22% from S-DASH series
  • Brake current rating increased to 50% of inverter rating
  • Monolithic gate drive & protection logic
  • Acoustic noise-less 11 kW class inverter application

Target Applications

Mitsubishi PM100RLB060 is used for General purpose inverter and servo drives and other motor controls.

Key Specifications

PM100RLB060 is an intelligent power module (IPM), 3-phase inverter + brake from Mitsubishi Electric, rated 600V, 100A. Source: manufacturer datasheet.

ParameterValue
ManufacturerMitsubishi Electric
Collector-emitter voltage VCES600 V
Collector current ±IC (TC = 25 °C)100 A
Peak collector current ±ICP200 A
Supply voltage VCC (P-N)≤ 400 V
Isolation voltage2500 Vrms, AC 1 min
Brake part600 V, 50 A (ICP 100 A)
PackageFlat-base type, insulated package
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM100RLB060 (reply within 24 hours)
