PM100RSD060Mitsubishi - Intelligent Power Module

PM100RSD060 Description

The Mitsubishi Electric PM100RSD060 is an intelligent power module (IPM) rated at 600 V and 100 A, available from USComponent. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM100RSD060.

Summary of Features

Target Applications

Mitsubishi PM100RSD060 is used for Inverters, UPS, Motion/Sevo Control, Power Supplies.

Key Specifications

PM100RSD060 is a 600 V, 100 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	100 A
Datasheet	Available on this page (PDF)

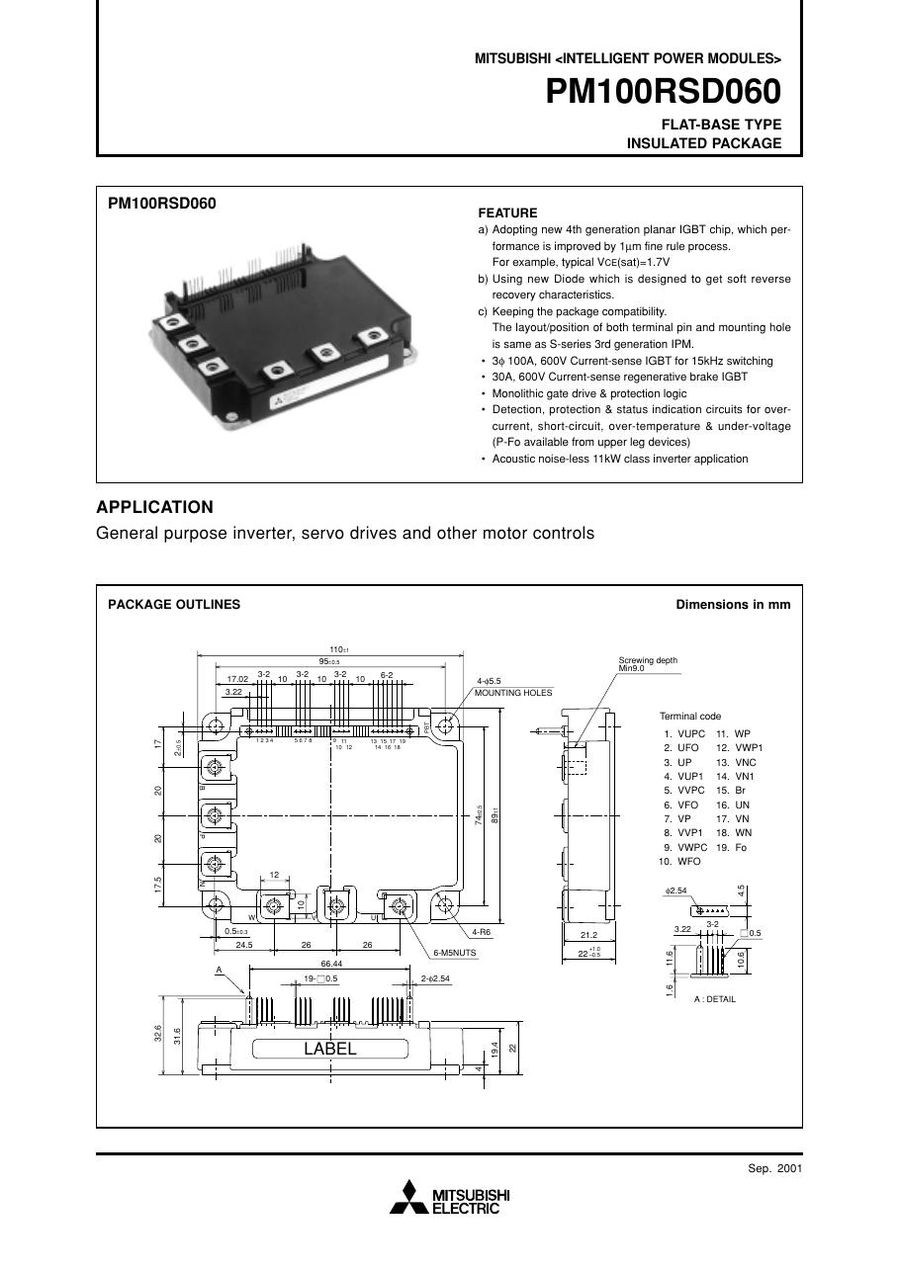

Download PM100RSD060 Datasheet

PM100RSD060 PDF Datasheet
