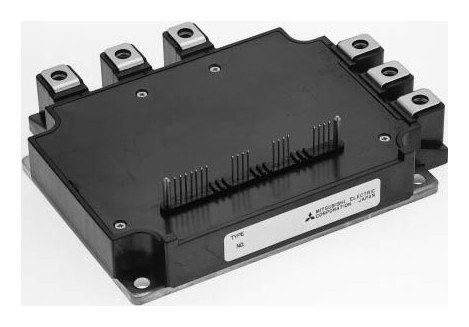

PM100RL1A120 Mitsubishi - Intelligent Power Module
PM100RL1A120 Description
PM100RL1A120 is a 1200 V / 100 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric (L1A - Large package). Typical applications: general purpose inverters, servo drives and other motor controls.
USComponent supplies PM100RL1A120 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 5th generation Full-Gate CSTBT chip
- Over-temperature protection that detects the chip surface temperature
- Error output signal from each protection, upper and lower arm
- Monolithic gate drive and protection logic
- Detection, protection and status indication for short circuit, over-temperature and under-voltage
- Compatible L-series package
- UL Recognized
Target Applications
Mitsubishi PM100RL1A120 is used for General purpose inverters, servo drives and other motor controls.
Key Specifications
PM100RL1A120 is a 1200 V / 100 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | L1 series |
| Configuration | Seven-pack (3-phase inverter + brake) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 100 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | L1A - Large |
| Package size | 110 x 135 mm |
| Supply status (Mitsubishi) | Not Recommended for New Designs |
| Datasheet | Available on this page (PDF) |
Status: Mitsubishi Electric lists PM100RL1A120 as Not Recommended for New Designs. USComponent can still source PM100RL1A120 and help you find a suitable alternative.
Technical document (PDF) | Request a quote for PM100RL1A120 (reply within 24 hours)
Related Part Numbers
| PM75RL1A120 1200(V) / 75(A) | PM150RL1A120 1200V, 150A | PM100RL1A060 600V, 100A | PM50RL1A120 1200V, 50A |
| PM25RL1A120 1200V, 25A | PM75RL1A060 600V, 75A | PM150RL1A060 600V, 150A | PM200RL1A060 600V, 200A |
| PM100RL1B060 600V, 100A | PM100RLA060 600V, 100A | PM100RHA060 100A/600V | PM100RLA120 1200V, 100A |
| PM100RG1C120 1200V, 100A | PM100RLB060 600V, 100A | PM100RG1B120 1200V, 100A | PM100RRA060 600V, 100A |
