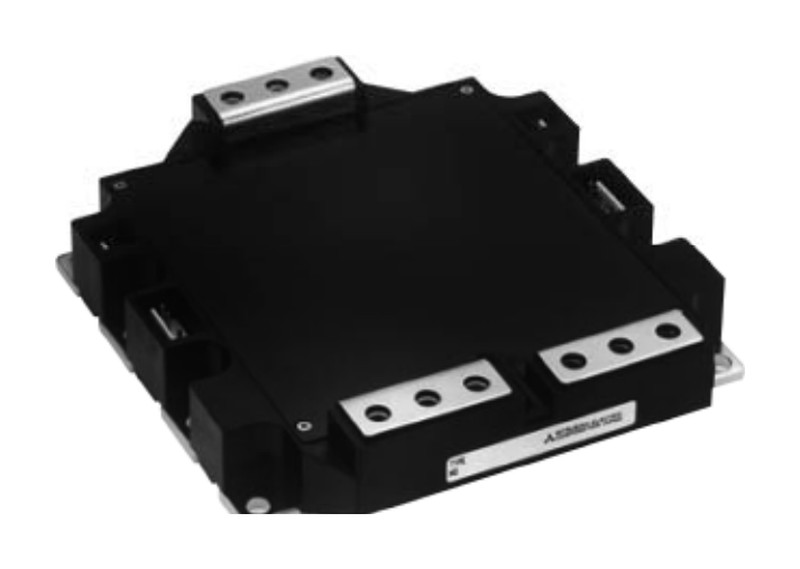

CM900DUC-24NF Mitsubishi - IGBT Module

CM900DUC-24NF Description

CM900DUC-24NF is a 1,200 V / 900 A dual (half-bridge) IGBT module from Mitsubishi Electric, NF series. Datasheet ratings: 900 A DC at TC = 96 °C, VCE(sat) 1.8 V typ. at 900 A, 2,500 V RMS isolation. Typical applications: Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM900DUC-24NF and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM900DUC-24NF is used for Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control and Power supply.

Key Specifications

CM900DUC-24NF is a 1,200 V / 900 A dual (half-bridge) IGBT module from Mitsubishi Electric, NF series. Source: Mitsubishi Electric datasheet (February 2014).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	NF series
Configuration	Dual switch (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC, DC, TC = 96 °C)	900 A
Repetitive peak collector current (ICRM, pulse)	1,800 A
Total power dissipation (Ptot, TC = 25 °C)	5,950 W
VCE(sat) (terminal), IC = 900 A, VGE = 15 V, Tj = 25 °C	1.8 V typ. / 2.5 V max.
Gate-emitter threshold voltage VGE(th)	6 / 7 / 8 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Maximum junction temperature (Tjmax)	150 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mounting torque (main terminals)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mass (typ.)	1,450 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply, etc.
Datasheet	Available on this page (PDF)
