CM1400DUC-24SMitsubishi - IGBT Module

CM1400DUC-24S Description

The Mitsubishi Electric CM1400DUC-24S is an IGBT module rated at 1200 V and 1400 A, available from USComponent. High Power Switching Use Insulated Type IGBT Module. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM1400DUC-24S.

Summary of Features

Target Applications

Mitsubishi CM1400DUC-24S is used for Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply, etc.

Key Specifications

CM1400DUC-24S is a 1,200 V, 1400 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	1400 A
Datasheet	Available on this page (PDF)

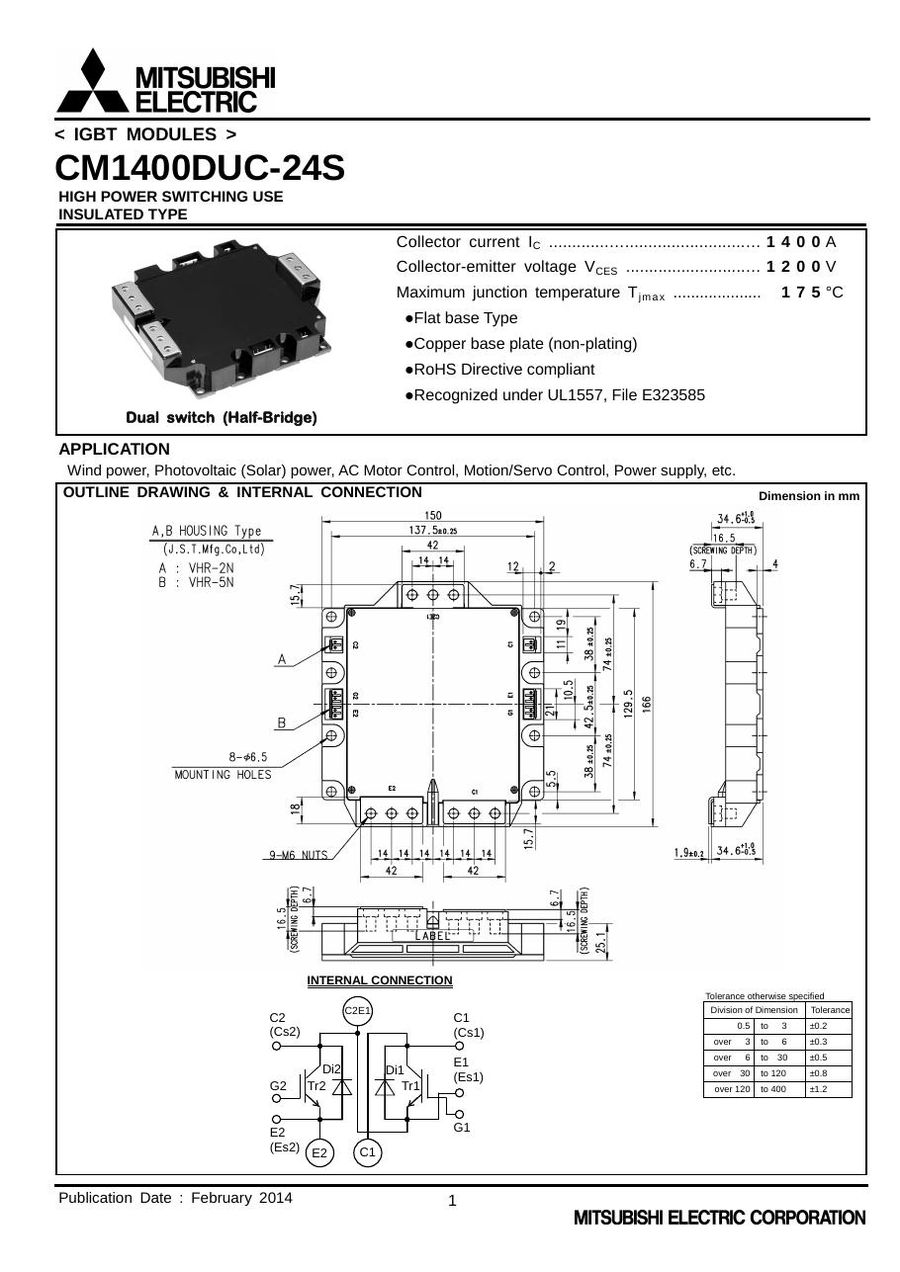

Download CM1400DUC-24S Datasheet

CM1400DUC-24S PDF Datasheet
