CM1000DUC-34SAMitsubishi - IGBT Module

CM1000DUC-34SA Description

The Mitsubishi Electric CM1000DUC-34SA is an IGBT module rated at 1700 V and 1000 A. High Power Switching Use Insulated Type IGBT Module. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM1000DUC-34SA.

Summary of Features

Target Applications

Mitsubishi CM1000DUC-34SA is used for Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply, etc.

Key Specifications

CM1000DUC-34SA is a 1,700 V, 1000 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	1000 A
Datasheet	Available on this page (PDF)

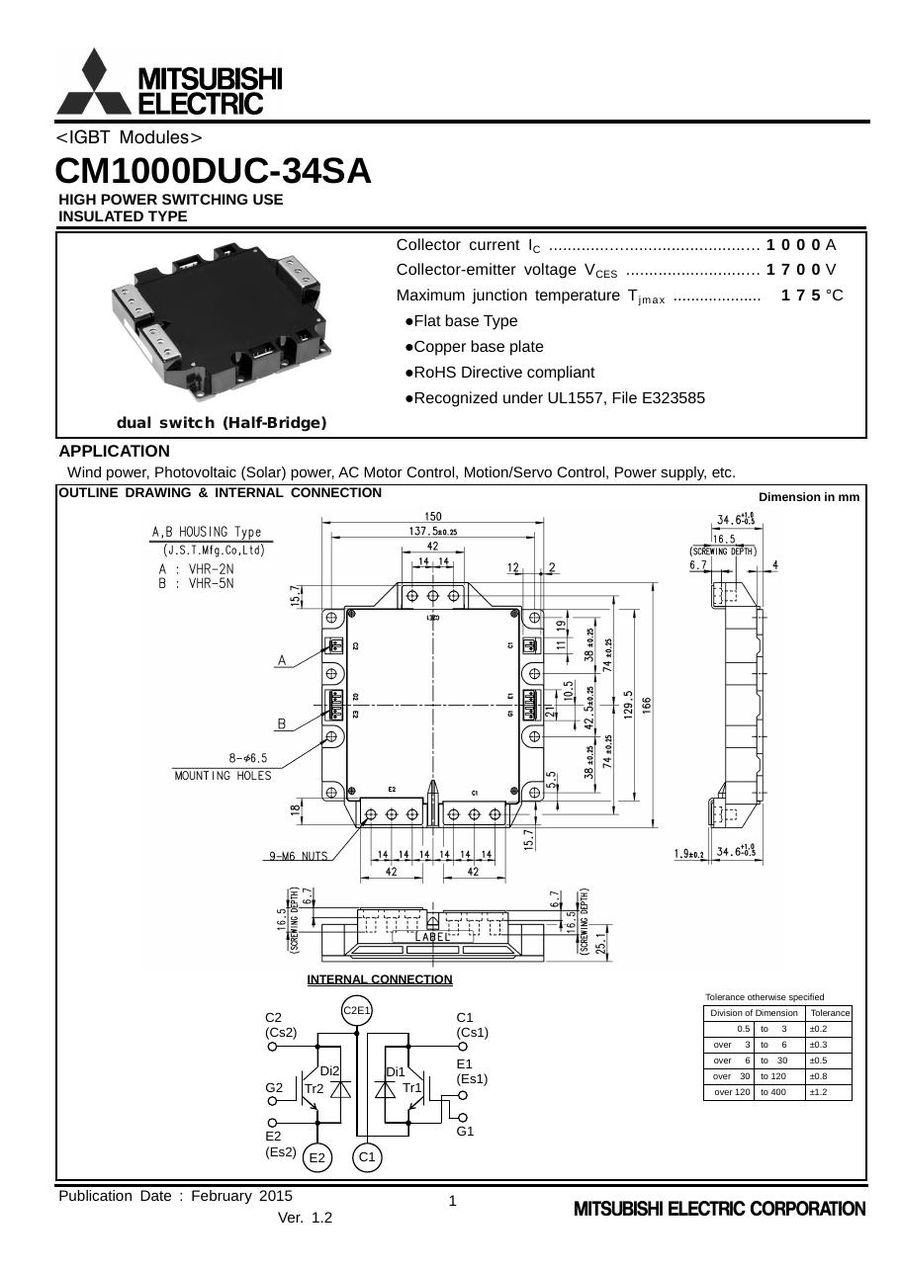

Download CM1000DUC-34SA Datasheet

CM1000DUC-34SA PDF Datasheet
