CM600HB-90H Mitsubishi - IGBT Power Transistor Module

CM600HB-90H Description

The CM600HB-90H from Mitsubishi Electric is an IGBT module with a 4500 V / 600 A rating. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

We help engineers and repair technicians find parts like the CM600HB-90H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi CM600HB-90H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM600HB-90H is a 4,500 V, 600 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	4,500 V
Collector current (IC)	600 A

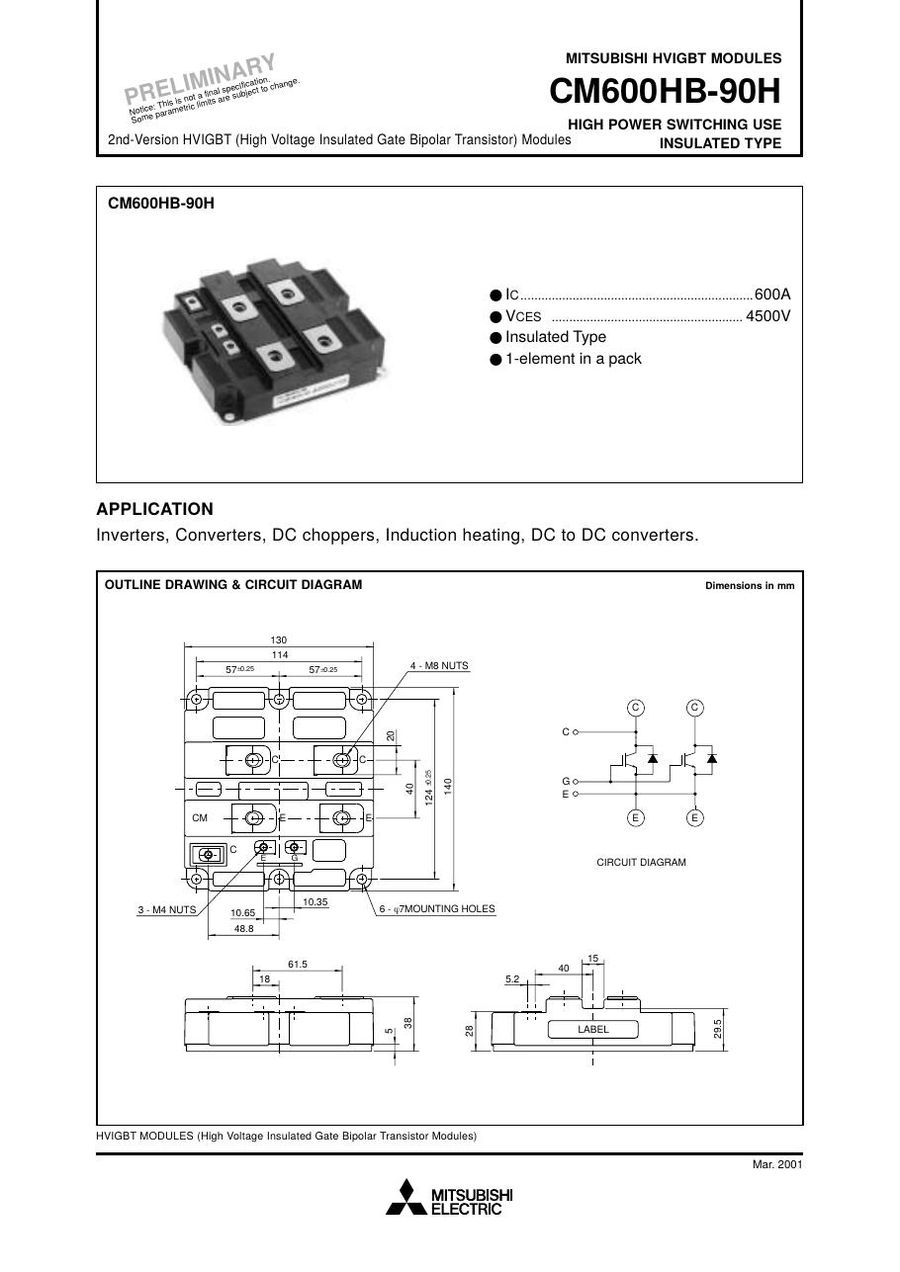

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM600HB-90H (reply within 24 hours)
