CM20TF-12H Mitsubishi - IGBT Power Transistor Module

CM20TF-12H Description

Mitsubishi Electric makes the CM20TF-12H, a 600 V IGBT module. The module contains six switches arranged as a three-phase bridge (6-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM20TF-12H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi CM20TF-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM20TF-12H is a 600 V, 20 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	20 A
Isolation voltage	2,500 V

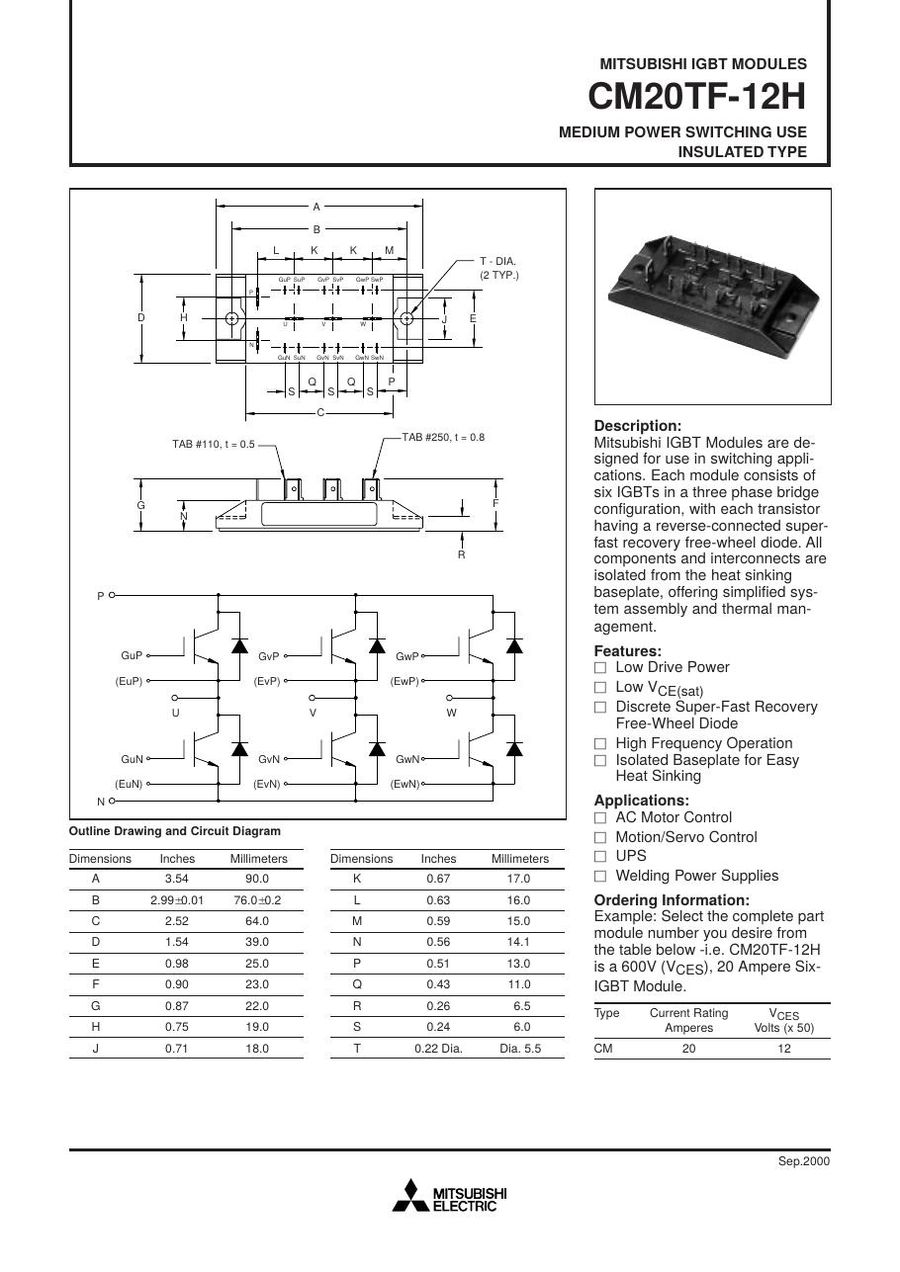

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM20TF-12H (reply within 24 hours)
