CM600DU-5F Mitsubishi - IGBT Power Transistor Module

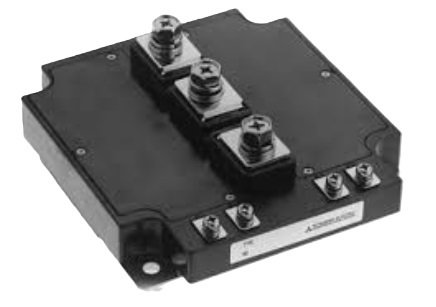

CM600DU-5F Description

CM600DU-5F is a dual IGBTMOD (F series), half bridge, 250 V from Powerex / Mitsubishi, rated 250V, 600A. Typical applications: AC motor control, motion/servo control, UPS, welding power supplies and laser power supplies.

USComponent supplies CM600DU-5F and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM600DU-5F is used for AC motor control, motion/servo control, UPS, welding power supplies and laser power supplies.

Key Specifications

CM600DU-5F is a dual IGBTMOD (F series), half bridge, 250 V from Powerex / Mitsubishi, rated 250V, 600A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Powerex / Mitsubishi
Collector-emitter voltage VCES	250 V
Collector current IC (Tc = 25 °C)	600 A
Peak collector current ICM	1200 A
VCE(sat) typ. / max. (IC = 600 A, VGE = 10 V)	1.2 V / 1.7 V
Junction temperature	-40 to 150 °C
Isolation voltage	2500 V, 1 min
Weight	580 g
Datasheet	Available on this page (PDF)

Note: This is a 250 V device (not 1200 V).

Technical document (PDF)  |  Request a quote for CM600DU-5F (reply within 24 hours)
