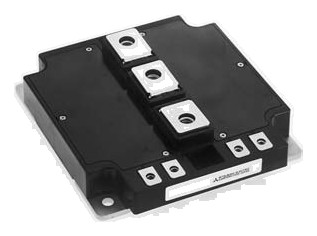

CM600DU-24FAPowerex - IGBT Module

CM600DU-24FA Description

Powerex CM600DU-24FA is an IGBT module. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM600DU-24FA.

Summary of Features

Target Applications

Powerex CM600DU-24FA is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

CM600DU-24FA is a 1,200 V, 600 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	600 A
Datasheet	Available on this page (PDF)

Download CM600DU-24FA Datasheet

CM600DU-24FA PDF Datasheet
