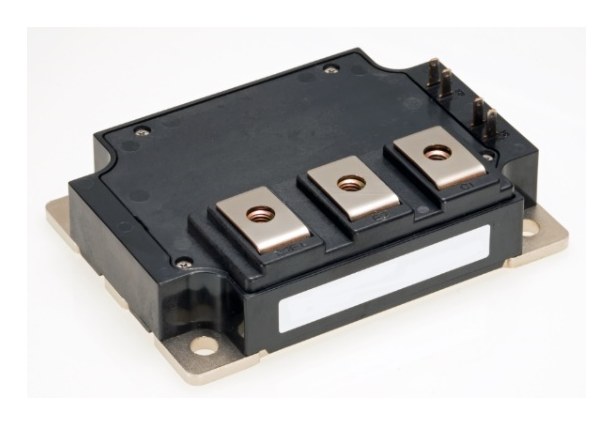

CM600DU-24TH Mitsubishi - IGBT Module

CM600DU-24TH Description

CM600DU-24TH is a 1200 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric (Standard Type package). Typical applications: medical equipment, Welder, Power supply.

USComponent supplies CM600DU-24TH and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM600DU-24TH is used for Medical equipment, Welder, Power supply.

Key Specifications

CM600DU-24TH is a 1200 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	TH series
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	600 A
Isolation voltage (Viso)	4,000 V RMS
Package	Standard Type
Package size	80 x 110 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM600DU-24TH (reply within 24 hours)
