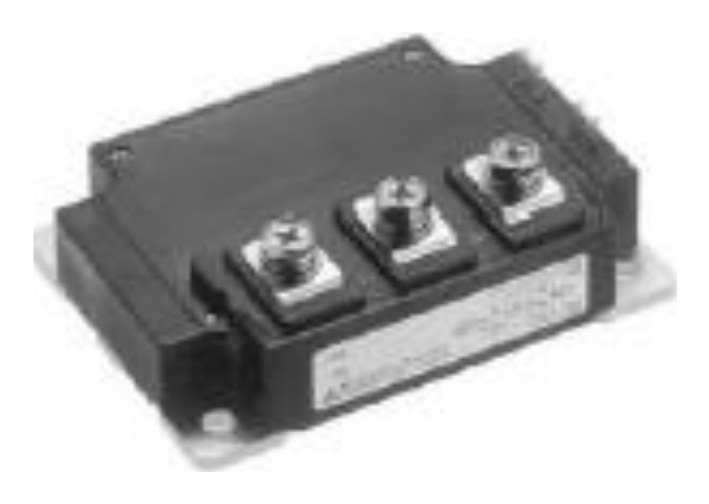

CM400DU-24TH Mitsubishi - IGBT Module

CM400DU-24TH Description

CM400DU-24TH is a 1200 V / 400 A dual (half-bridge) high-speed IGBT module from Mitsubishi Electric. Typical applications: medical equipment, welders and power supplies.

USComponent supplies CM400DU-24TH and other power semiconductors, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM400DU-24TH is used for Medical equipment, welders and power supplies.

Key Specifications

CM400DU-24TH is a 1200 V / 400 A dual (half-bridge) high-speed IGBT module from Mitsubishi Electric. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Mitsubishi Electric
Configuration	Dual switch (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Gate-emitter voltage (VGES)	±20 V
Collector current (IC)	400 A DC at TC = 25 °C
Repetitive peak collector current (ICRM)	800 A
Total power dissipation (Ptot)	1970 W at TC = 25 °C
VCE(sat), terminal	4.40 V typ. / 5.10 V max. at IC = 400 A, VGE = 15 V, Tvj = 25 °C
Switching times (max.)	td(on) 300 ns, tr 100 ns, td(off) 500 ns, tf 150 ns
Switching energy (Tvj = 150 °C)	Eon 10.0 mJ, Eoff 20.0 mJ typ. at 600 V / 400 A
Gate charge (QG)	1.0 µC typ.
Isolation voltage (Visol)	4000 V RMS, 1 min
Junction temperature	Tvj max 175 °C; operating -40 to +150 °C
Mass	580 g typ.
Datasheet	Available on this page (PDF)

Note: The datasheet states that no short-circuit capability is designed into this module.
