CM600DU-12NFH Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 600V, 600A

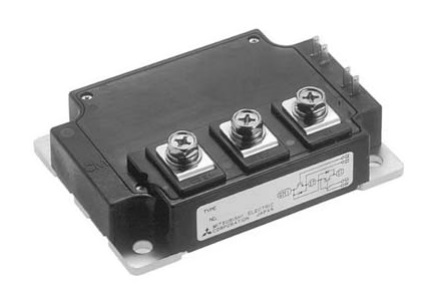

CM600DU-12NFH Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM600DU-12NFH Description

CM600DU-12NFH is a 600 V, 600 A Mitsubishi Electric dual IGBT module (NFH high frequency series), used for high frequency switching (30 kHz to 60 kHz).

USComponent supplies CM600DU-12NFH and other Mitsubishi Electric power modules, including discontinued types. Download the datasheet or request a quote for pricing and availability.

Target Applications

Mitsubishi CM600DU-12NFH is used for high frequency switching (30 kHz to 60 kHz).

Key Specifications

ManufacturerMitsubishi Electric
ConfigurationDual (half-bridge) IGBT module
SeriesNFH-Series (high frequency switching, 30 - 60 kHz)
VCES600 V
IC600 A
Collector current (operation, RMS)400 A
Isolation voltage2500 V (RMS, 60 Hz, AC 1 min)
Terminal torqueM6: 3.5 - 4.5 N·m
Mounting torqueM6: 3.5 - 4.5 N·m
Weight580 g
Junction temperature-40 to +150 °C
