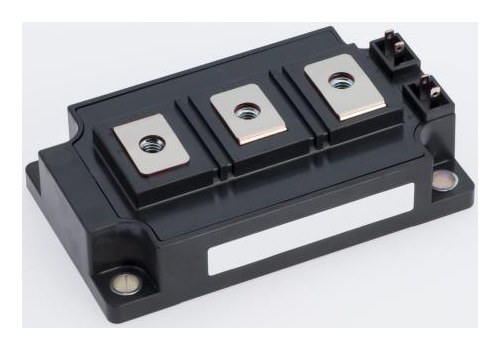

CM600C1Y-24T Mitsubishi - IGBT Module

CM600C1Y-24T Description

CM600C1Y-24T is a 1200 V / 600 A dual AC switch IGBT module from Mitsubishi Electric (Standard Type package). Typical applications: AC Power Switch for NPC.

USComponent supplies CM600C1Y-24T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM600C1Y-24T is used for AC Power Switch for NPC.

Key Specifications

CM600C1Y-24T is a 1200 V / 600 A dual AC switch IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	T series
Configuration	Dual AC switch
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	600 A
Isolation voltage (Viso)	4,000 V RMS
Package	Standard Type
Package size	62 x 108 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM600C1Y-24T (reply within 24 hours)
