CM40YE13-12H Mitsubishi - IGBT Power Transistor Module

CM40YE13-12H Description

The CM40YE13-12H from Mitsubishi Electric is an IGBT module with a 600 V / 40 A rating. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM40YE13-12H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM40YE13-12H is used for Three Level Inverter Topologies, Solar Power Inverters, High Efficiency UPS and Long Motor Lead Applications.

Key Specifications

CM40YE13-12H is a 600 V, 40 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	40 A

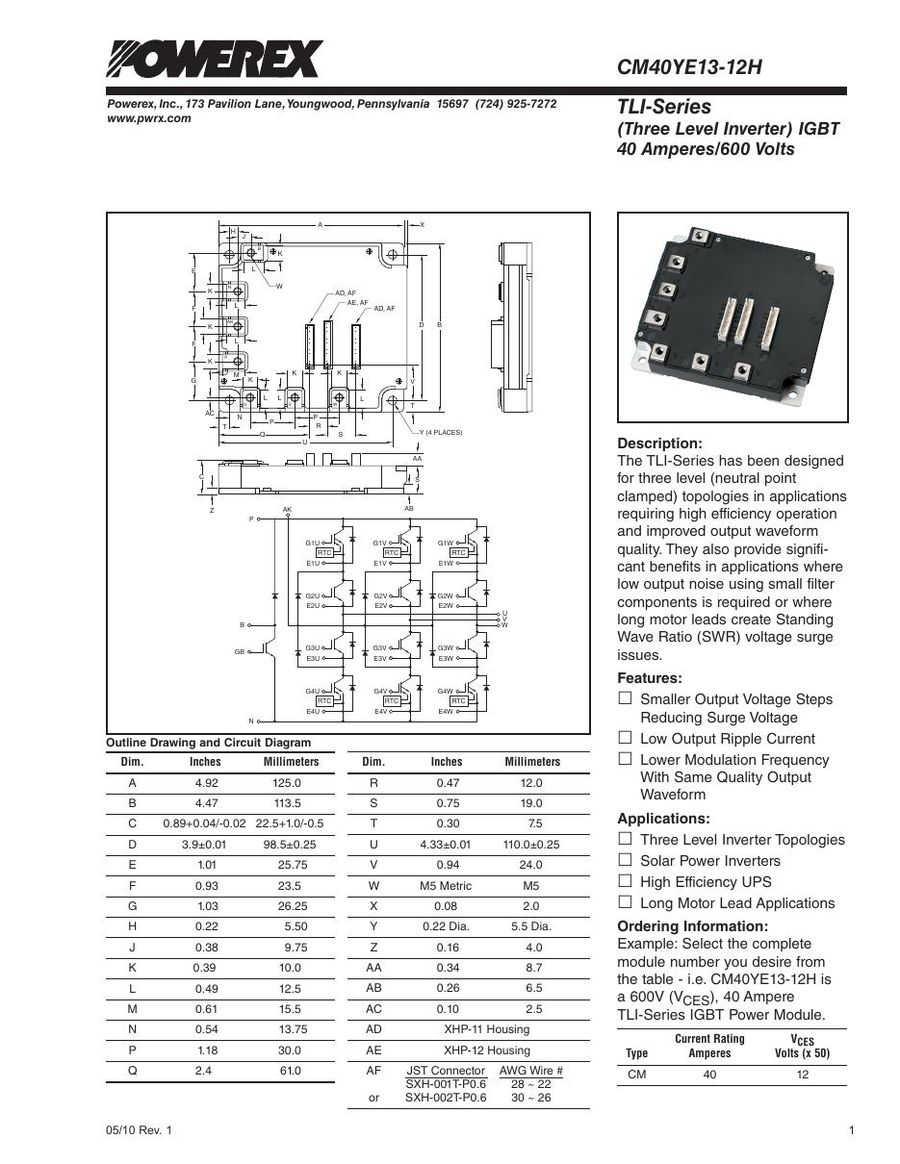

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM40YE13-12H (reply within 24 hours)
